Up To 63A Current Simulation Evse Tester Series - PM701U/ PM701E/ PM701UT with Ifferent Mold Selection

Features of Up To 63A Current Simulation Evse Tester Series - PM701U/ PM701E/ PM701UT with Ifferent Mold Selection

• The adapter is capable of conducting electrical safety and functiontests on mode 3 electric vehicle charging equipment (EVSE) with a type2 connector .
• PE Pre-Test (potential presence of dangerous voltage at PE. terminalby mistake)-touch electrode and led lamp.phase indicator(presence of all three phase voltages measured to N)-
• three led lamps.PP state simulation (NC,13A,20A,32A,63A)-rotary switch.CP state simulation (A,B,C,D)-rotary switch.CP error “E" simulation (cp signal short-circuited to PE)-push button.PE error (earth fault)simulation (interruption of PE conductor)-pushbutton.
• Measurements on live conductors(L1,L2,L3 and N)and on PEconductor -five 4 mm safety sockets for connection to installationtesters.
• Test of cp signal-two 4mm safety sockets for connection to anoscilloscope.
• Mains socket (on backside) to connect an external load only for testpurposes.

Product Description of Up To 63A Current Simulation Evse Tester with Ifferent Mold Selection

The adapter is capable of conducting electrical safety and functiontests on mode 3 electric vehicle charging equipment (EVSE) with a type2 connector .

• 1-simulate connection of an electrical vehicle to the testedcharging station (the test adapter simulates electrical vehicle andcharging cable),connection of the test adapter to a chargingstation triggers the charging process in the charging station (CPswitch at the adapter shall be in appropriate mode), various cablecharging capabilities can be simulated(NC,13A,20A,32Aand63A)as well as all possible electrical vehicle modes(A,B,C,D).2-To provide convenient access to charging terminalsL1,L2,L3,N,PE and to CP signal terminals to which additionalmeasuring equipment can be connected for further testing,charging stations should be tested after installation and repeatedperiodically.
• Visual inspectionContinuity of protective conductors and protective bondi!
• Insulation resistances
• Loop/Line impedance.RCD testFunction tests (including but not limited to):
• Vehicle state A,B,C,D-Error handing (error “E",PE Error (Earth Fault)...)
• Communication (PwM signal)
• Mechanical locking of plug-
• Rotary field/phase sequence
• Other tests

Service

• All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface), and delivery fee will be borne by the customer.
• Material and service fee will be charged when warranty is expired, and delivery fee will be charged.
• To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs.
• Customer can refer the maintenance order to get more information.

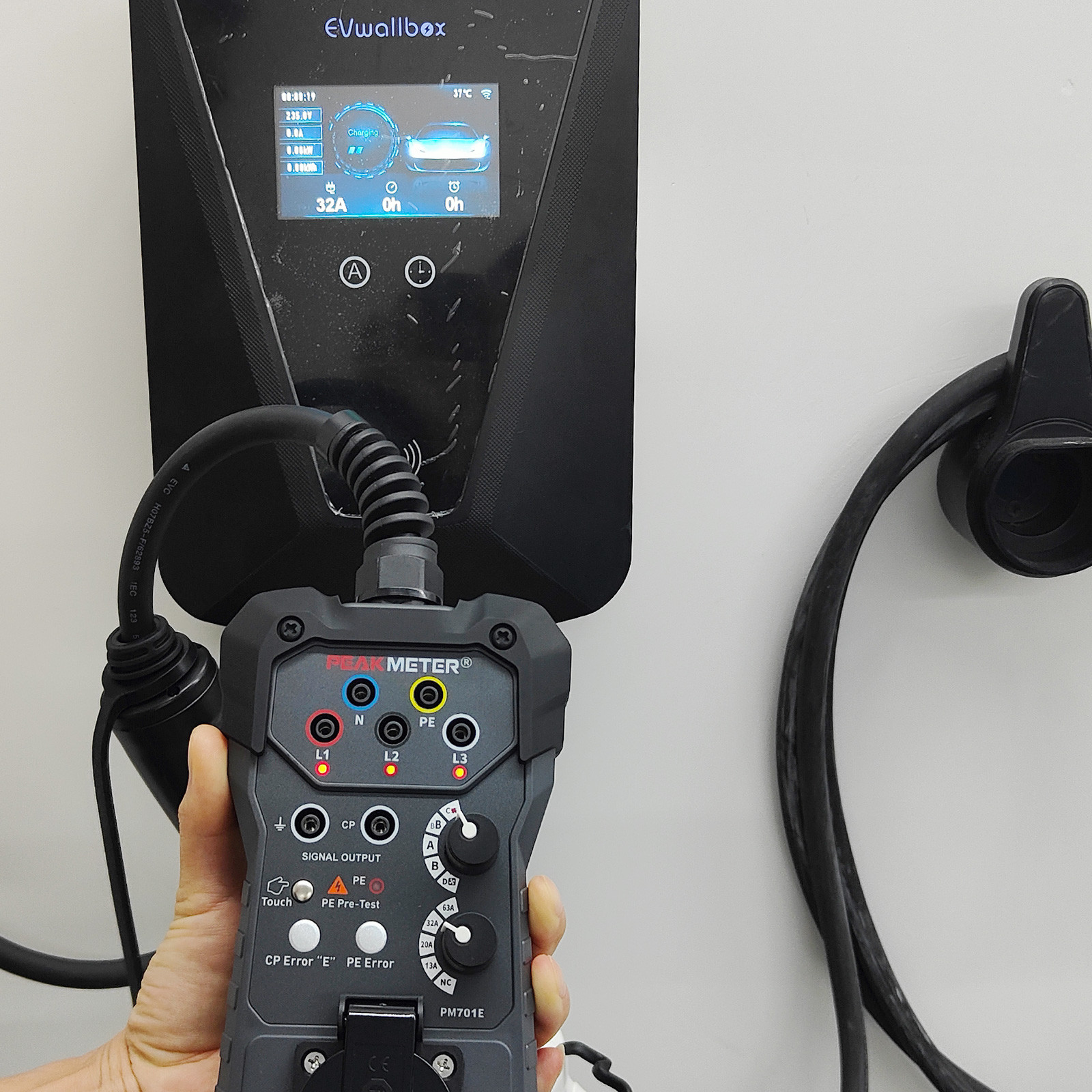

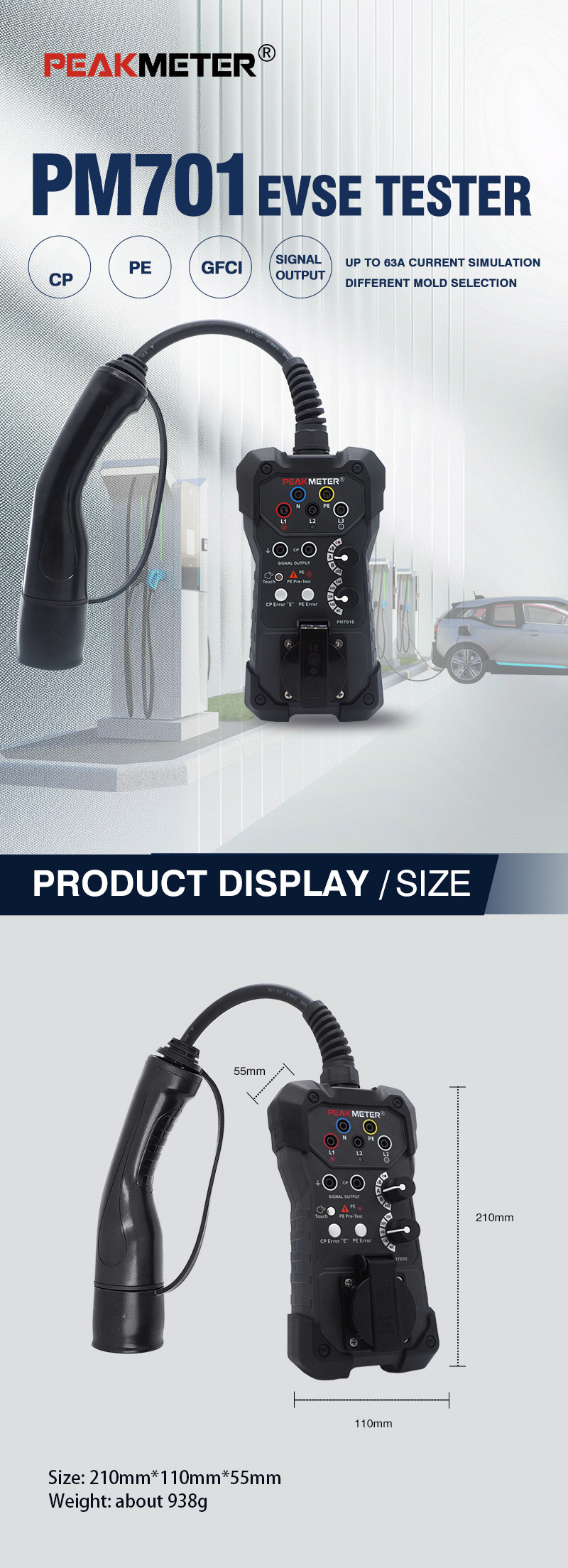

Detailed Images of Up To 63A Current Simulation Evse Tester with Ifferent Mold Selection
