    Auto Range 1000A AC Current Measurement Digital AC Clamp Meters With NCV and Ture RMS

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2017A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Auto Range 1000A AC Current Measurement Digital AC Clamp Meters With NCV and Ture RMS

    Advanced AC Digital Clamp Meters With Non-Contact Voltage Detection,NCV and Ture RMS


    Features of AC Digital Clamp Meter


    • AC Current Measurement
    • AC & DC Voltage Measurement
    • Resistance and buzzer measurement
    • Low Battery Indication
    • Over range Indication: “OL” or “-OL”
    • Unit display: with function and quantity of electricity unit display
    • Max and Min measurement
    • NCV and VDF

    SpecificationRangeAccuracy
    DC Voltage2V/20V±(0.8%+2)
    200V/1000V±(1.0%+2)
    AC Voltage2V/20V±(1.0%+5)
    200V/1000V±(1.2%+5)
    AC Current2A/200V±(2.5%+5)
    1000A±(2.5%+8)
    Resistance200Ω/2kΩ/20kΩ/200kΩ/2MΩ±(1.0%+3)
    20MΩ±(1.2%+10)
    Capacitance2nF/20nF/200nF/2uF/20uF/200uF/2mF±(4.0%+5)
    Frequency2Hz/20Hz/200Hz/2kHz/20kHz±(1.5%+5)
    Features
    Display2000 counts
    Backlight
    Relative measurement
    Manual /Automatic Range
    Maximum,minimum measurement
    Low Battery Indication
    Auto Power OffAbout 15 minutes
    NCV
    Diode test
    Continuity
    Single probe live wire detection
    Data Hold
    True RMS
    General
    Power Supply2*1.5V AAA Batteries
    Net weight189g (batteries are not included)
    Size195mm*66mm*33mm
    Jaw Sizeφ35mm
    Safety RatingEN61010-1, EN61010-2-032, EN61326, CAT. Ⅲ 600V

    Product Description of AC Digital Clamp Meter


    The PM2017A digital AC clamp meter is a stable, safe and reliable instrument. The circuit of the whole machine is based on integrated circuits, equipped with full-range over-current protection circuit, novel appearance, can be used for AC current, AC and DC voltage, temperature, frequency, resistance, capacitance, diode and circuit breakage measurement and non-contact voltage and fire line detection, it is a superior performance electrical instrument.


    • Manual select measurement function and range
    • Overload protection for the whole measurement range
    • Maximum allowable voltage between the measuring terminal and the Earth
    • Polar indication: automatically indicate, “-“ means negative polarity

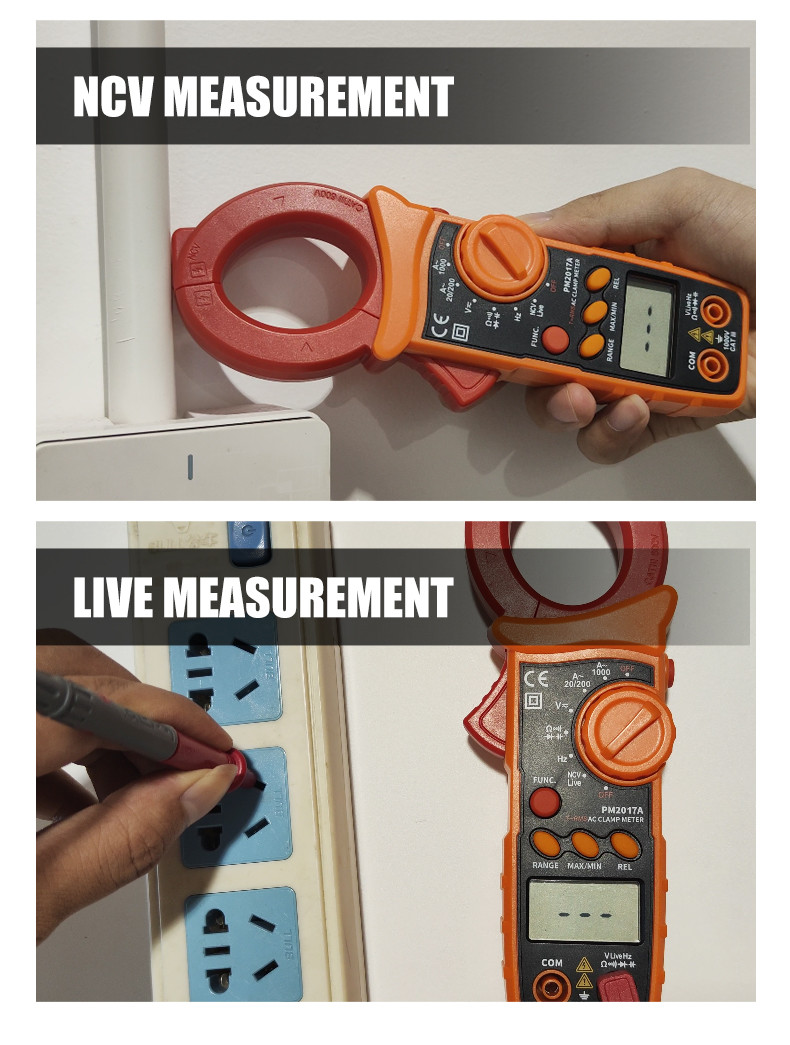

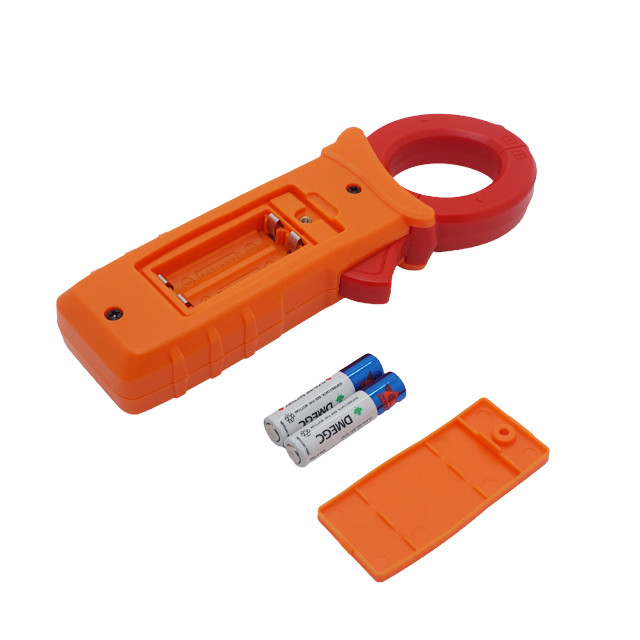

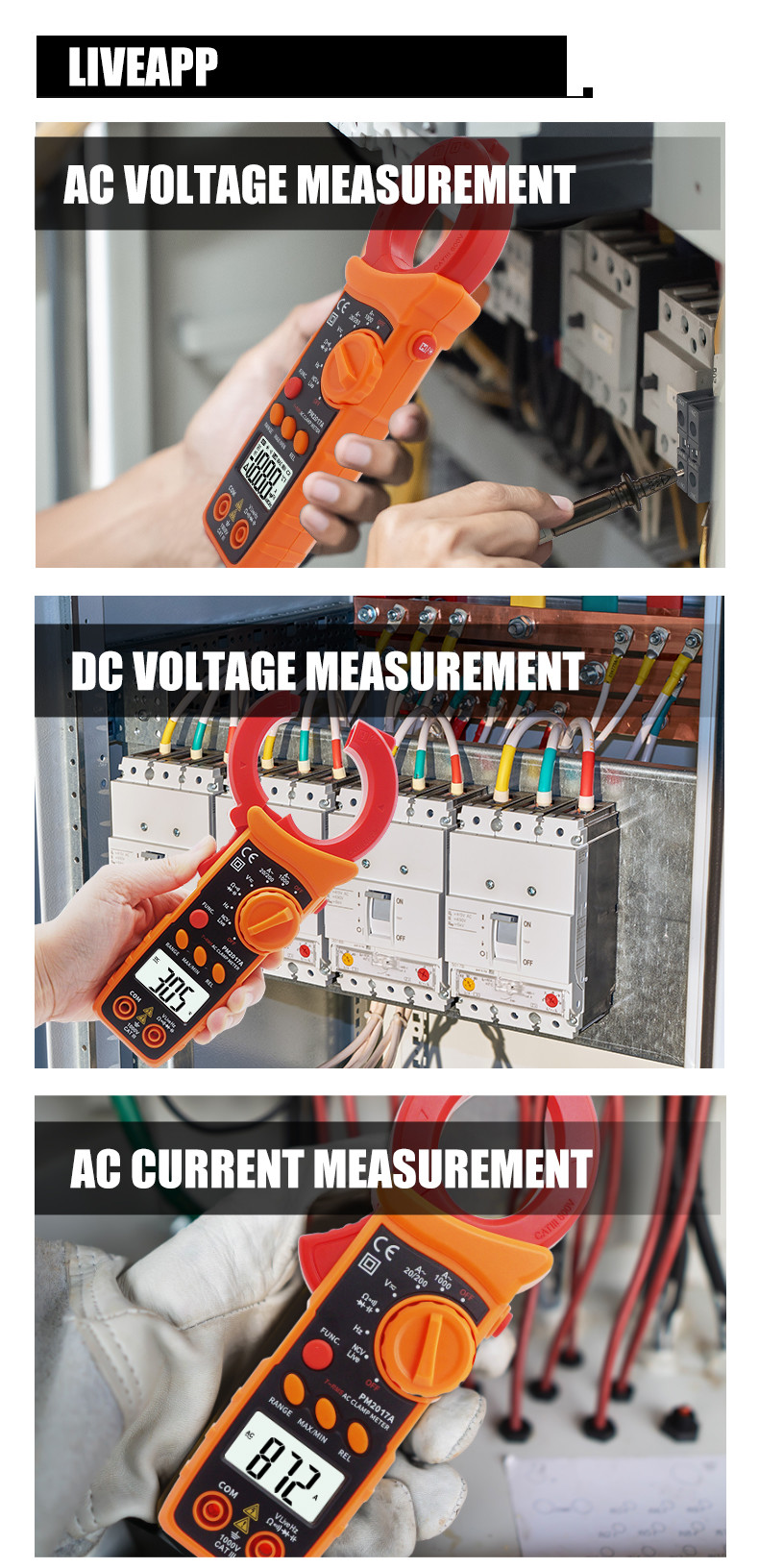

    Detailed Images of AC Digtal Clamp Meter
