    AC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current Measurement

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2008B
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    AC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current Measurement

    AC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter and Backlight Current Measurement

    Features of AC Digital Clamp Meter

    • Auto range and manual range options are available
    • Overrange protection is provided for all ranges
    • Overrange indication: “OL” or “-OL”
    • Unit indication: function and unit
    • Auto power off time: 15 min
    • Transformer Jaws:Designed to pick up the AC current flowing through the conductor.
    • Hand Guards: protect user's hand from touching the dangerous area.

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V±(0.5%+3)
    AC Voltage6V/60V/600V±(0.8%+5)
    AC Current6A/60A//600A±(2.5%+5)
    Resistance600Ω/6KΩ/60KΩ/600KΩ/6MΩ±(1.0%+3)
    60MΩ±(2.0%+3)
    Capacitance10nF/100nF/1μF/10μF/100μF±(3.0%+5)
    1mF/10mF±(4.0%+5)
    100mF±(5.0%+5)
    Frequency10Hz/100Hz/1KHz/100KHz/1MHz/10MHz±(5.0%+5)
    Duty0.1-99.9%±(3.0%+2)
    Temperature-20~1000°C±(1.0%+2)
    -4~1832℉
    Features
    Display6000 counts
    Auto and Manual Range
    Data Hold
    Work Light
    Diode Test
    Max Value
    Continuity
    BackLight
    General
    Power Supply3*1.5V AAA Batteries
    Net weight241g (batteries are not included)
    Size205mm*71mm*35mm
    Jaw SizeØ26mm
    Safety RatingEN61010-1, EN61010-2-032, EN61326, CAT. Ⅲ 600V

    Product Description of AC Digital CLamp Meter


    This meter 3 3/4 digits with steady operations,fashionablestructure and highly reliable measuring instrument. The Meter uses largescale of integrated circuit with double integrated AD converter as its coreand hasfull range overload protection.The meter can perform measurements of AC current, AC/DC voltage resistance ,frequency,capacitance as well as continuity and diode test .

    • It can be used to measure DC and AC voltge,DC current,resistance,diodes, and in-circuit continuity test.
    • This digital clamp meter is provided with a LCD back light.
    • Specially, it has a Max value hold function, auto/manaul ranging select function andworking backlight which is easy to use.
    • LCD Screen:Max Display 6000
    • Input Terminals
    • Input positive terminals for all measurement except currentmeasurement ,connected with red test leads

    Service


    • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface), and delivery fee will be borne by the customer.
    • Material and service fee will be charged when warranty is expired, and delivery fee will be charged.
    • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs.
    • Customer can refer the maintenance order to get more information.

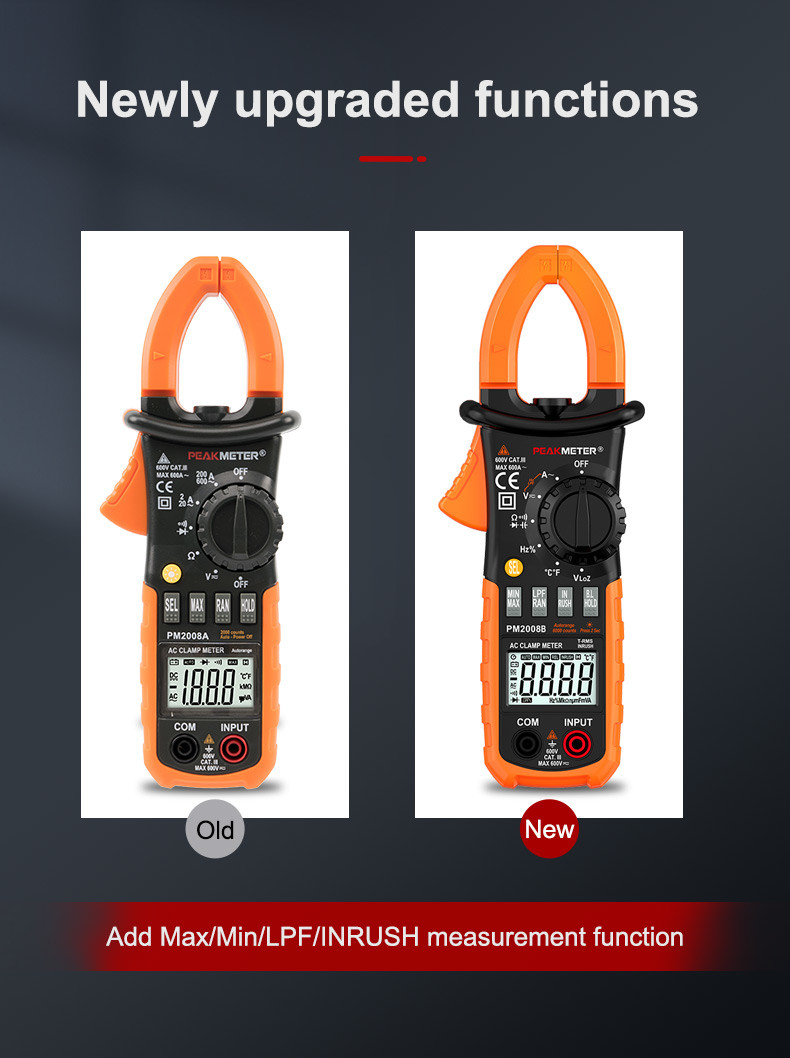

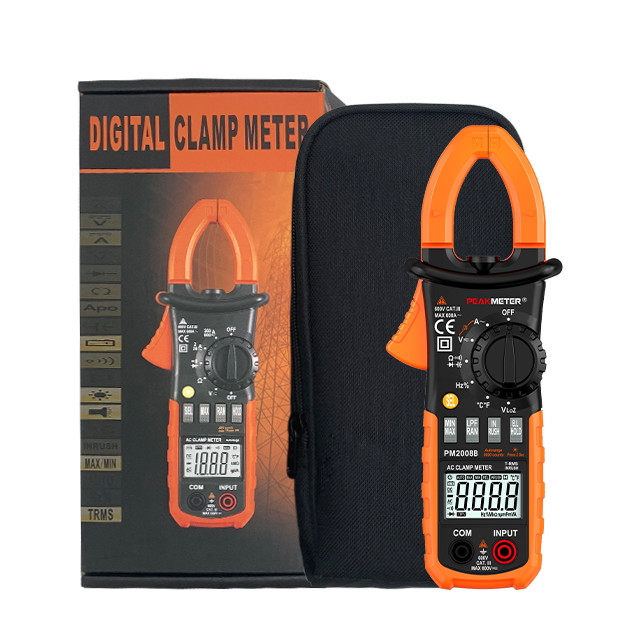

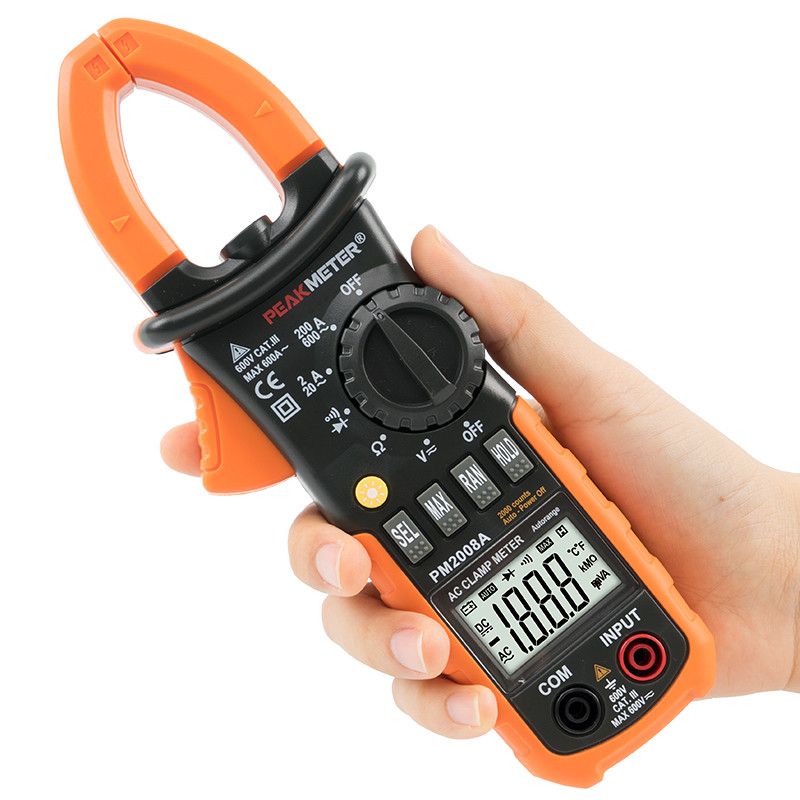

    Detailed Images of AC Digital Clamp Meter


    AC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current MeasurementAC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current MeasurementAC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current MeasurementAC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current MeasurementAC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current MeasurementAC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current MeasurementAC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current MeasurementAC Digital CLamp Meter With Auto And Manual Range,Ammeter , Voltmeter , Ohmmeter And Backlight Current Measurement


    Our Target


    We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.


    R&D Team


    Our R&D team have over 20 years R&D experience in instrument industry .


    Mission


    Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
