AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement

    Buy cheap AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement from wholesalers

    Buy cheap AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement from wholesalers
    • Buy cheap AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement from wholesalers
    • Buy cheap AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement from wholesalers
    • Buy cheap AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement from wholesalers
    • Buy cheap AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement from wholesalers
    • Buy cheap AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement from wholesalers

    AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2108
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement

    Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold Diode Test Ohmmeter Measurement

    Features of AC/DC Digital Clamp Meter with Double Mold


    • Auto rangeand manual range options are available.
    • Overrange protection is providedfor all anges.
    • Maximum voltage betwen terminals and earthground:600V DC or rms AC.
    • Operating altitude:max.2000 meters (7000ft,) Display LCD.
    • Maximum valuedisplay:6599 digits.

    SpecificationsRangeAccuracy
    DC Voltage660mV/6.6V/66V±(0.8%+3)

    400mV

    4V/40V/400V

    600V±(1.0%+5)
    AC Voltage

    660mV

    ±(1.5%+10)
    6.6V/66V±(1.2%+5)
    600V±(1.5%+10)
    4V/40V400V
    AC Current66A/600A±(3.0%+10)
    40A/400A
    DC Current66A/600A±(3.0%+10)
    40A/400A
    INRUSHCURRENT(100MS66A/600A±(10%+60)
    Resistance660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ±(1.2%+2)
    66MΩ±(2.0%+5)
    400Ω/4kΩ/40kΩ/400kΩ
    4MΩ/40MΩ
    Capacitance6.6μF/66μF/660μF/6.6mF/6.6mF±(4.0%+3)
    40nF/400nF/4μF/40μF/400μF/4000μF
    Frequency99.99Hz/999.9Hz(Pass A)±(1.5%+5)
    99.99Hz/999.9Hz/9.999(Pass V)±(1.5%+5)
    10Hz/10MHz
    Duty Cycle10%~95%±3.0%
    0.1%~99.9%
    Features
    Display6600 counts
    Auto and Manual Range
    Inrush Current
    Ture RMS
    Data Hold
    Work Light
    Diode Test
    Max/Min
    Continuity
    Back Light
    General
    Power3*1.5V AAA Batteries
    WeightApprox.237g
    Size205mm*71mm*35mm
    Jaw SizeØ26mm
    Safety RatingEN61010-1, EN61010-2-032, EN61326, CAT. Ⅲ 600V

    Product Description of AC/DC Digital Clamp Meter with Double Mold


    This meter is a portable professional measuring instrument with LCDand back light easily reading.The 'single-hand operation'designfor the range switch makes measurement simple and easy. Overloadprotection and low battery indication are provided, It is an idealmulti-function Instrument with scores of practical applications forprofessional, workshop, school, hobby and home use.


    • It can be used to measure AC/DC voltage and current,resistance ,frequency,duty,capacitance, as well as continuity anddiode test.
    • Both auto range and manual range are available.
    • This meter is equipped with inrush current measuring function.
    • This meter is equipped with auto zero function (at DCA range).
    • Especially,It is equipped with maximum value measuring function and minimum value measuring function.
    • Display: LCD.
    • This meter has function of auto power off.

    Service


    • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface), and delivery fee will be borne by the customer.
    • Material and service fee will be charged when warranty is expired, and delivery fee will be charged.
    • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs.
    • Customer can refer the maintenance order to get more information.

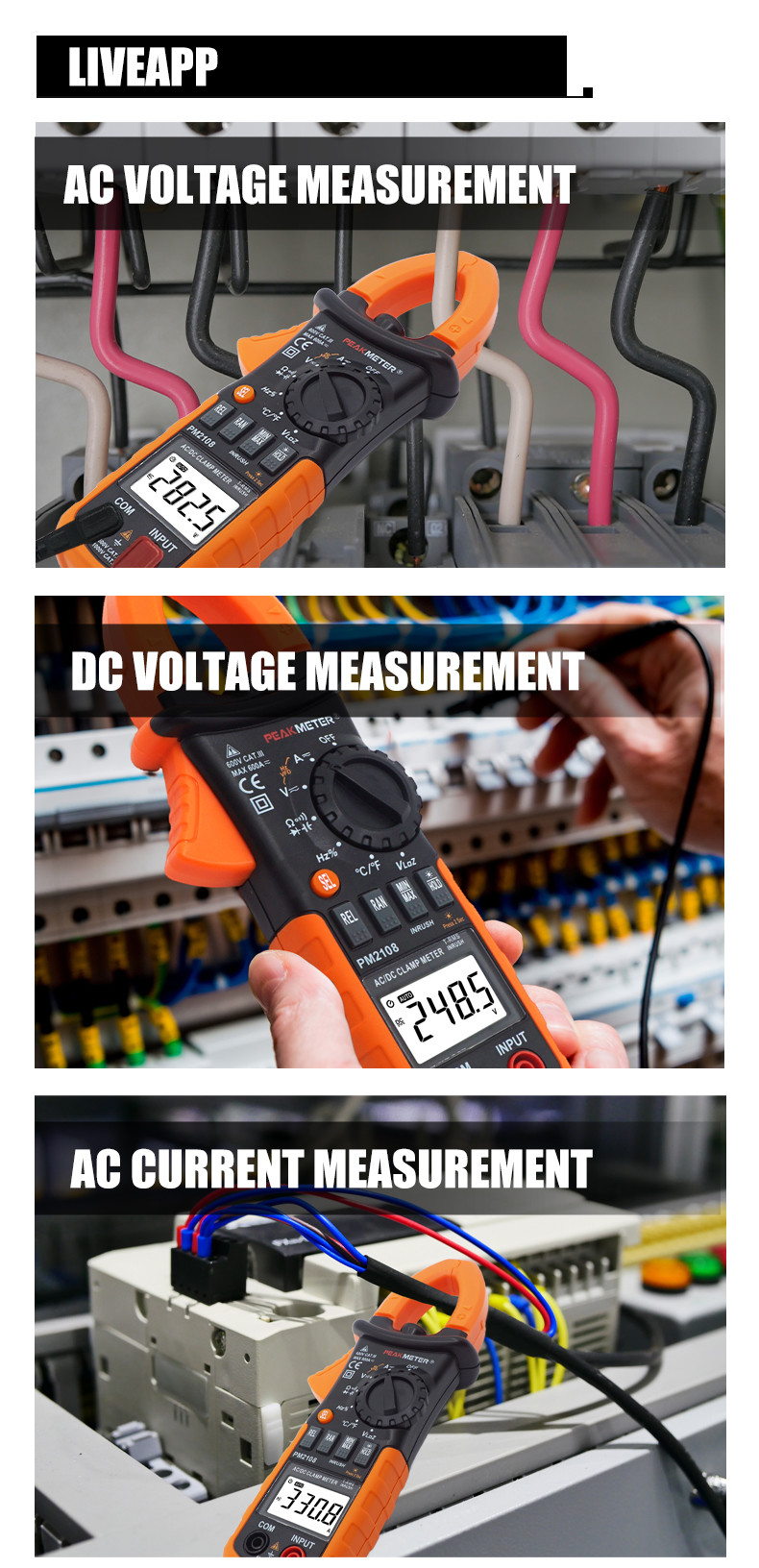

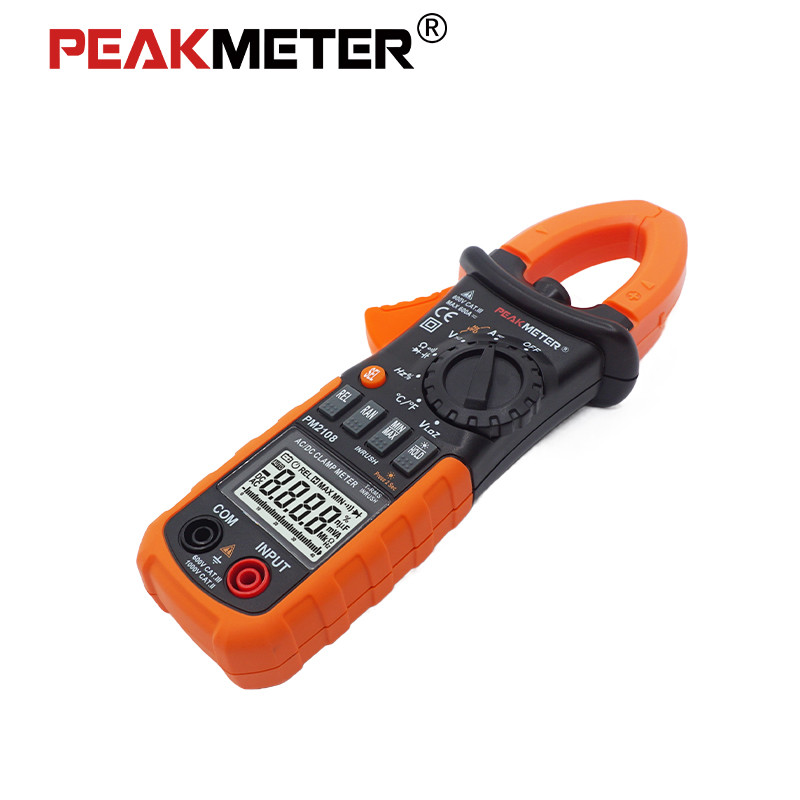

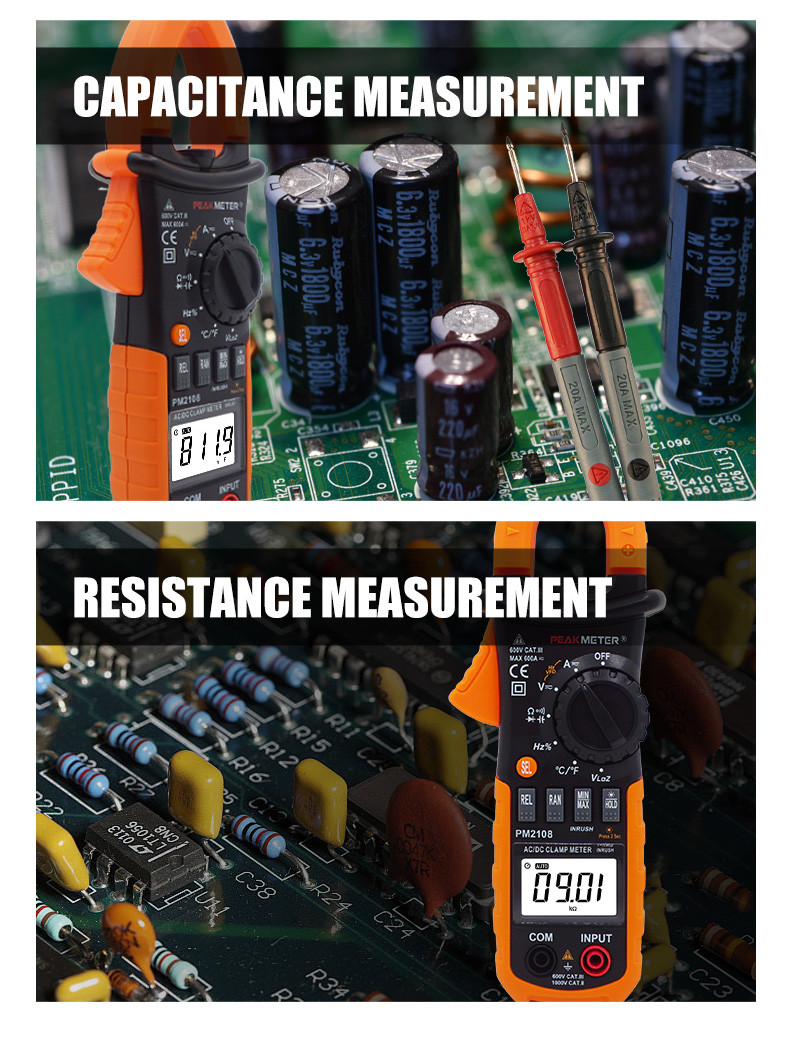

    Detailed Images of AC/DC Digital Clamp Meter with Double Mold

    AC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter MeasurementAC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter MeasurementAC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter MeasurementAC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter MeasurementAC/DC Digital CLamp Meter With Ammeter , Voltmeter ,Double Mold,Back Light,LCD,Ohmmeter Measurement
