Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

    Buy cheap Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications from wholesalers

    Buy cheap Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications from wholesalers
    • Buy cheap Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications from wholesalers
    • Buy cheap Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications from wholesalers
    • Buy cheap Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications from wholesalers

    Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8200A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

    High-Performance Voltage and Connectivity Tester


    Features of Voltage/Connectivity Tester


    • High Accuracy Measurement
    • Auto Range
    • Phase Sequence Test
    • RCD Test
    • Continuity Test
    • IP65 Waterproof and Dustproof

    PM8200A
    SpecificationRangeAccuracy
    DC voltage
    AC voltage
    50Hz~1kHz
    12V±1V
    24V±2V
    50V±4V
    120V±8V
    230V±12V
    400V±14V
    690V±18V
    1000V±24V
    DC voltage1500V±30V
    Continuity≤100kΩ buzzing, indicator light is on.
    Feature
    Auto Range
    Phase Sequence TestRange of three-phase voltage test: 150V-400V
    RCD testVoltage 230V(40-500Hz); Current 30mA-40mA
    Flash Light
    Auto Power Off
    Continuity Test
    Waterproof and dustproof levelIP65
    Wake Up
    General
    Battery2*1.5V AAA Batteries
    Weight305g(Without battery)
    Size290mm*80*34mm
    Safety RatingEN61326-1,EN60529,IEC 61243-3 CAT Ⅲ 1000V


    Description of Voltage/Connectivity Tester


    The PM8200A is a high-performance voltage and connectivity tester designed for electricians, engineers, and technicians. With its rugged design, this instrument is ideal for various complex electrical environments. The PM8200A offers precise measurements and versatile features, making it an essential tool for all your electrical testing needs.


    • High Accuracy Measurement: Measures DC voltage from 12V to 1500V and AC voltage within the 50Hz to 1kHz range, ensuring precise data.
    • Auto Range: Automatically selects the optimal range, simplifying operation and enhancing measurement efficiency.
    • Phase Sequence Test: Supports three-phase voltage range from 150V to 400V, facilitating the testing of three-phase circuits.
    • RCD Test: Suitable for RCD testing at 230V voltage and 30mA to 40mA current, ensuring proper operation of residual current devices.
    • Continuity Test: Indicates circuit continuity with a buzzer and indicator light, making it easy to use.
    • Waterproof and Dustproof: IP65 rating makes it suitable for harsh environments.

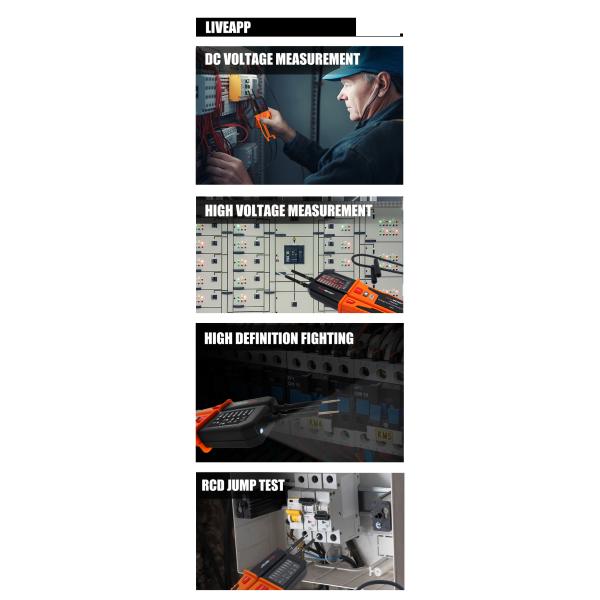

    Images of Voltage/Connectivity Tester


    Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

    Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

    Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

    Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications

    Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications


    Auto-Range IP65 Waterproof Multifunction Voltage Detector for Industrial Applications


    Applications
    The PM8200A is suitable for various electrical maintenance, troubleshooting, and installation tasks, including but not limited to:
    • Industrial electrical equipment maintenance
    • Building electrical installation
    • Electronic equipment repair
    • Household appliance testing

    Services


    • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
    • Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
    • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
    • Customer can refer the maintenance order to get more information .
