    True RMS Digital Multimeter Comprehensive Measurement with Temperature, Capacitance, Frequency, High Safety Device

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM18C
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    True RMS Digital Multimeter Comprehensive Measurement with Temperature, Capacitance, Frequency, High Safety Device

    PM18C True RMS Digital Multimeter | High Accuracy & Wide Measurement Range | Temperature & Frequency


    English User Manual:https://drive.google.com/open?id=1HcFFSdh220gP1FJrMc0MDpKZyoRXl_5T


    Features of Digital Multimeter with T-RMS


    • Unmatched Accuracy and Range: Providing highly accurate measurements across a broad range of parameters, making it an essential tool for professionals and enthusiasts alike

    • Robust Design and Safety: Built to meet stringent safety standards

    • Convenient and Efficient: auto power off, a large backlit display, and intuitive controls

    • Powered by 3 x 1.5V AAA batteries ( not included )

    PM18C Digital Multimeter with T-RMS
    SpecificationsRangeAccuracy
    DC Voltage600mV/6V/60V/600V/1000V±(0.5%+3)
    AC Voltage6V/60V±(0.8%+3)
    600V/1000V±(1%+10)
    DC Current60μA/60mA/600MA±(0.8%+3)
    20A±(1.2%+3)
    AC Current60mA/600MA±(1%+3)
    20A±(1.5%+3)
    Resistance600/6k/60k/600k/6M±(0.8%+3)
    60MΩ±(1.2%+30)
    Capacitance6nF±(4.0%+30)
    60nF/600nF/6uF/60uF/600uF/6mF±(4.0%+5)
    100mF±(5.0%+3)
    Frequency9.999Hz/99.99Hz/999.9Hz/9.999Hz
    99.99kHz/999.9kHz/9.999MHz
    ±(1.0%+3)
    Duty1%~99%±(3.0%+5)
    Temperature﹣20°C~1000°C/﹣4°F~1832°F±(1.0%+3)
    hFE0~1000±(1.0%+3)
    Feature
    Display6000 Counts
    AVC/ACA TRMS
    AVC (bandwidth)1kHz
    Continuity√(sound and LED Alarm)
    Diode Test
    Low Battery Indication
    Live Line Test
    NCV
    Back light
    Data Hold
    Auto power off
    General
    Power Supply1.5V AAA *3
    WeightApprox.331/340g
    Size194*90*56mm
    Safety Standard/RatingEN61010-1,EN61010-2-033, EN61326, CAT III 1000V, CAT IV 600V

    Description of Digital Multimeter with T-RMS


    The PM18C True RMS Digital Multimeter is a high-precision tool that measures voltage, current, resistance, capacitance, frequency, and temperature. It features non-contact voltage detection with alerts, a 6000 counts display for clarity, and a built-in work light for ease of use. Designed for reliability and safety, it is perfect for accurate and versatile electrical measurements.


    • Unmatched Accuracy and Versatility: The PM18C provides precise True RMS measurements for a wide range of electrical parameters including voltage, current, resistance, and more, ensuring you get reliable data every time.

    • Enhanced Safety Features: Equipped with non-contact voltage detection, sound and LED alarms, and compliance with stringent safety standards, the PM18C prioritizes user safety in every use.

    • User-Friendly Design: With a large 6000 counts display, built-in work light for low-light conditions, and auto power-off functionality, the PM18C is designed for convenience and efficiency.

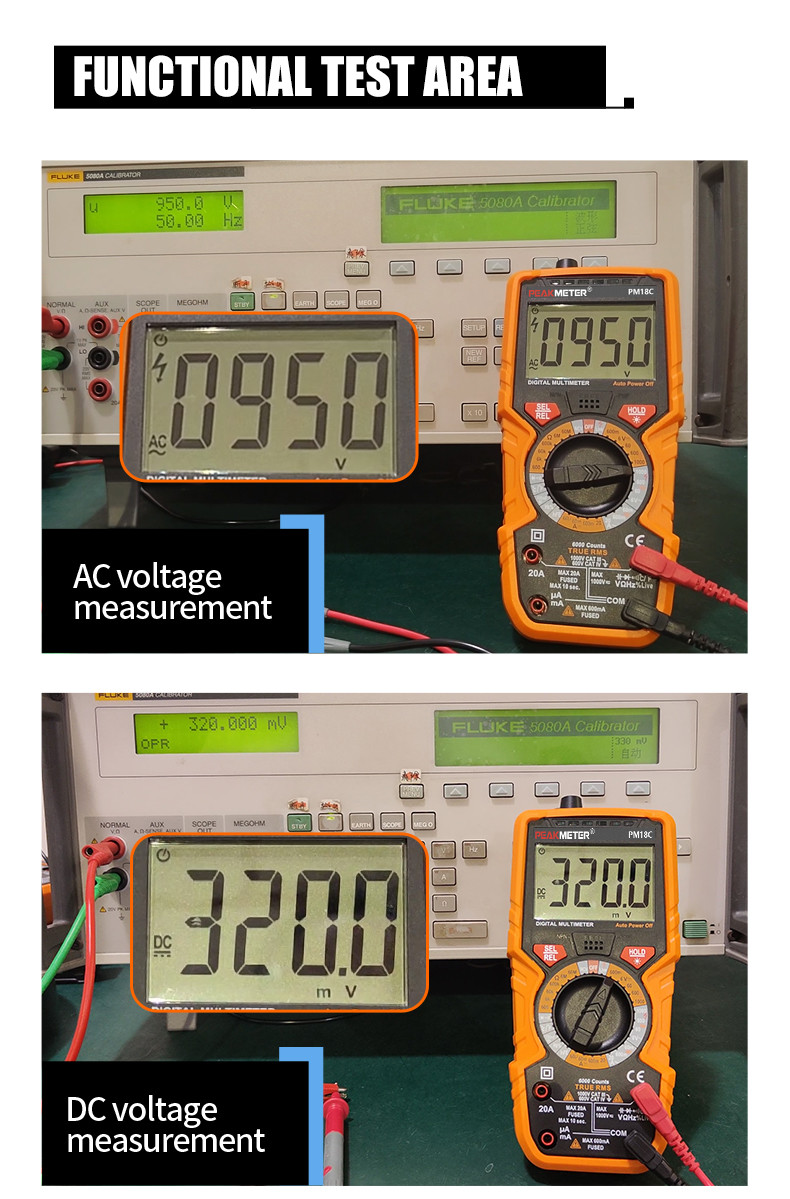

    Images of Digital Multimeter with T-RMS


    True RMS Digital Multimeter Comprehensive Measurement with Temperature, Capacitance, Frequency, High Safety Device


    True RMS Digital Multimeter Comprehensive Measurement with Temperature, Capacitance, Frequency, High Safety Device


    True RMS Digital Multimeter Comprehensive Measurement with Temperature, Capacitance, Frequency, High Safety Device


    True RMS Digital Multimeter Comprehensive Measurement with Temperature, Capacitance, Frequency, High Safety Device

    True RMS Digital Multimeter Comprehensive Measurement with Temperature, Capacitance, Frequency, High Safety Device


    Quality True RMS Digital Multimeter Comprehensive Measurement with Temperature, Capacitance, Frequency, High Safety Device for sale
