Torch Lamp Handheld Digital Multimeter 6000 Counts LCD Display With T-RMS Workshop Dmm

    Buy cheap Torch Lamp Handheld Digital Multimeter 6000 Counts LCD Display With T-RMS Workshop Dmm from wholesalers

    Buy cheap Torch Lamp Handheld Digital Multimeter 6000 Counts LCD Display With T-RMS Workshop Dmm from wholesalers
    • Buy cheap Torch Lamp Handheld Digital Multimeter 6000 Counts LCD Display With T-RMS Workshop Dmm from wholesalers

    Torch Lamp Handheld Digital Multimeter 6000 Counts LCD Display With T-RMS Workshop Dmm

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM16B
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Torch Lamp Handheld Digital Multimeter 6000 Counts LCD Display With T-RMS Workshop Dmm

    Hand - Held Digital Multimeter With T-RMS Workshop Dmm with Torch Lamp


    Features of Handheld Digital Multimeter


    • Fuse protection: FF 600mA/600V FF 10A/600V
    • Display: 6000 counts LCD display
    • Over range indication: The LCD displays “OL”
    • Reading hold mode
    • Backlight and lighting function
    • Automatic shutdown function
    • Measuring AC and DC voltage
    • Measuring resistance
    • Measuring diode
    • Buzzer connection/continuity test
    • Measuring capacitance
    • Measuring frequency
    • Measuring current
    • NCV test

    SpecificationsRangeAccuracy
    DC Voltage600mV/6V/60V/600V±(0.5%+3)
    AC Voltage6V/60V/600V(<500Hz) ±(0.8%+3)
    (=500Hz) ±(1.5%+10)
    DC Current600uA/6000uA/60mA/600mA±(0.8%+3)
    6A/10A±(1.2%+3)
    AC Current600uA/6000uA/60mA/600mA±(1.0%+3)
    6A/10A±(1.2%+3)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(0.8%+3)
    60MΩ±(0.8%+3)
    Capacitance10nF±(4.0%+10)
    100nF/1000nF/10uF/100uF/1000uF/10mF±(4.0%+3)
    100mF±(3.0%+3)
    Frequency

    9.999Hz/99.99Hz/999.9Hz/9.999kHz

    /99.99kHz/999.9kHz/9.999MHz

    ±(3.0%+3)
    Duty1%~99%±(2.0%+2)
    Features
    Display:6000 countsACV (bandwidth)1kHz
    ACV/ACA TRMSLow Battery Indication
    Auto Power OffFrequency
    ContinuityDiode Test
    Work LightBacklight
    Flash LightDuty
    NCVLive
    General
    Power Supply: 4*1.5 AAA batteries
    Size: 150mm*74mm*48mm
    Net weight: 226g (batteries are not included)
    Gross weight: 341g
    Safety Rating: EN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Description of Handheld Digital Multimeter

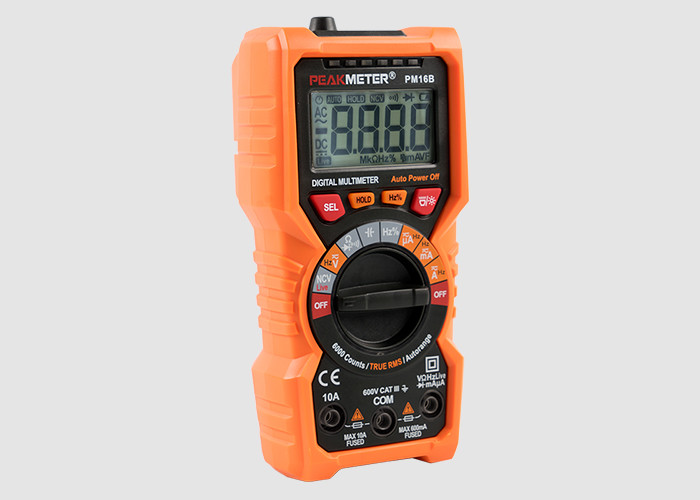

    PM16B is a handheld digital multimeter with 6000 count true RMS display and backlight function. It can measure AC&DC voltage and current, resistance, capacitance, frequency, and also detect live wires, diodes. This instrument is an ideal choice for students, factories or laboratories.


    • 6000 counts LCD display with backlit
    • Non-contact AC voltage detection in 3 levels
    • Live wire detection with single test lead
    • Audible continuity test in 3 levels
    • Extra bright torch lamp built on back
    • Input socket light indication
    • True RMS AC measurement (40HZ~1KHZ)
    • Display frequency at ACV/ACA measurement
    • Data hold, auto ranging,auto power-off
    • 10A/600V fused , full ranges protection
    • Safety as per IEC 1010-1 Cat.III 600V

    Services


    • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
    • Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
    • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
    • Customer can refer the maintenance order to get more information .
