    Manual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV Function

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM118A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Manual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV Function

    Manual and Auto range digital meter 1000V voltmeter AC DC digital multimeter MAX and MIN measurement NCV function


    Features of Muti-function Digital Multimeter


    • Auto and Manual range, relative value measure, max/min value measurement
    • Data hold, back light, work light, auto power off, NCV and live wire detection
    • AC/DC voltage, AC/DC current, resistance, frequency, duty cycle, diode, capacitance measurement
     RangeAccuracy
    DC Voltage600mV/6V/60V/600V/1000V±(0.5%+3)
    AC Voltage600mV/6V/60V/600V±(0.8%+5)
    1000V±(1.0%+5)
    DC Current600uA/6mA/60mA/600mA±(0.8%+3)
    10A±(1.2%+3)
    AC Current600uA/6mA/60mA/600mA±(1.0%+3)
    10A±(1.5%+3)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(1.0%+3)
    60MΩ±(2.0%+3)
    Capacitance60nF/600nF/6uF/60uF/600uF/6mF±(4.0%+5)
    100mF±(5.0%+3)
    Frequency10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz±(0.5%+5)
    Duty Cycle1%~99%±(3.0%+2)
    Temperature-40℃~1000℃±(1.0%+2)
    -40℉~1832℉±(1.0%+2)
    Feature
    Display6000 counts
    NCV Detection
    Live Line Test
    Auto Range and Manual Range
    Relative Measurement
    VFD Measurement
    MAX/MIN Measurement
    Work Light
    Back Light
    Data Hold
    Diode
    hFE
    Continuity
    Auto Power Off
    General
    Power Supply3*1.5V AAA Batteries
    Size194mm*90mm*56mm
    WeightAbout 380g
    Safety RatingEN61010-1, EN61010-2-030, EN61010-2-032, CAT Ⅲ 1000V

    Product Description of Multi-function Digital Multimeter


    This meter is a hand-held digital multi-meter with the function of displaying True RMS. It is a large-screen LCD unit with backlight and illumination light functions so that the user can easily recognize reading. It is equipped with the function of overload protection and the indicator of battery under voltage. Either for professional, factories, schools, enthusiasts or households, it is an ideal multi-functional meter.


    • Temperature measurement – The meter can measure ambient temperature and measure temperature with a thermocouple
    • Protective case – Integrated protective case to prevent damage to the body when the meter falls accidentally; Convenient Probe slot allows the probe to be carried with the instrument when not in use, making it difficult to lose.
    • Multi-function key, dial – The instrument has abundant usage functions, with simple keys and dials to make the functions clearly displayed in front of the user.

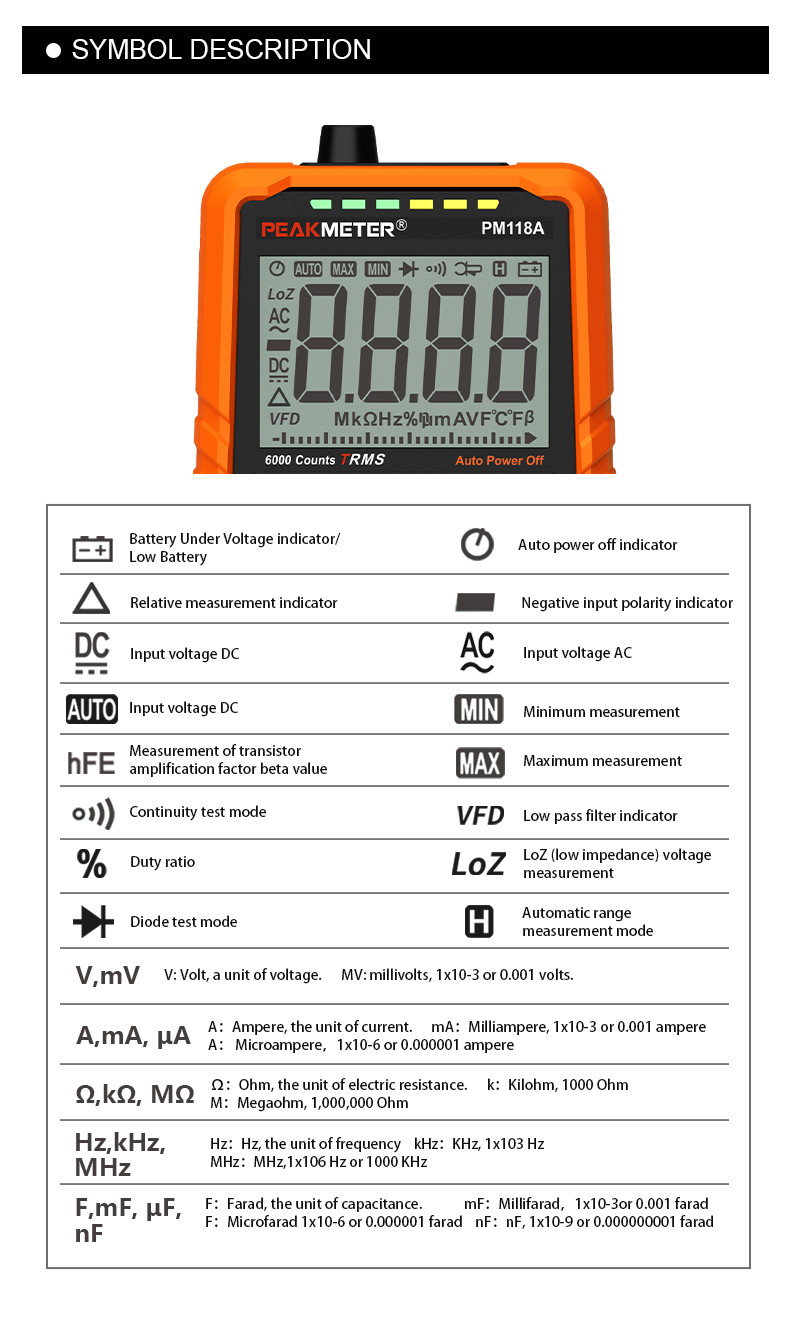

    Detailed Images of Multi-function Digital Multimeter


    Manual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV FunctionManual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV FunctionManual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV FunctionManual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV FunctionManual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV FunctionManual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV FunctionManual And Auto Range Digital Meter 1000V Voltmeter AC DC Digital Multimeter MAX And MIN Measurement NCV Function
