    Digital Clamp Meter Measurement instrument tooling AC&DC Voltage NCV Meter

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2018A
    Certification : CE
    Supply Ability : 50,000.00 per month
    Delivery Time : 5-35 days
    • Product Details
    • Company Profile

    Digital Clamp Meter Measurement instrument tooling AC&DC Voltage NCV Meter

    Auto Range AC Clamp Meter 600A AC Current NCV Test


    Features of Digital AC Clamp Meter


    • 2000 counts display and Back Light
    • Auto Power Off and Auto Range
    • Continuity and NCV Test
    • Low Battery Indication
    • AC/DC Voltage: 600V
    • AC Current: 600A

    SpecificationsRangeAccuracy
    DC Voltage200mV/2V/20V/200V±(0.8%+2)
    600V±(1.0%+2)
    AC Voltage2V/20V±(1.0%+5)
    200V/600V±(1.2%+5)
    AC Current2A/20A±(3.0%+15)
    200A/600A±(3.0%+10)
    Resistance200Ω/2KΩ/20KΩ/200KΩ/2MΩ±(1.2%+2)
    20MΩ±(2.0%+5)
    Features
    Display2000counts
    Auto range
    Continuity
    Data Hold
    Back Light
    LPF(1KHz-3dB)
    Low Battery Indication
    Auto Power off
    NCV
    General
    Power Supply2×1.5V AAA Batteries
    Net weight174g (batteries are not included)
    Gross weight371g
    Size189mm×70mm×34mm
    Jaw SizeΦ24mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Description of Digital AC Clamp Meter


    PM2018A+ digital AC clamp meter is a stable, safe and reliable instrument. This instrument has double integral A/D conversion and overload protection circuit, 2000 counts and LCD display. The instrument can measure AC current, AC and DC voltage, resistance, diode, continuity, NCV, data retention, backlight display and other functions. It is a special instrument for electricians with superior performance.


    • Display - The large-screen high-definition 2000 count display, show multi-functional measurement units and data, the backlight function enhances the brightness of the display.
    • NCV (non-contact voltage) - When the meter is close to the line with voltage, the buzzer will alarm.

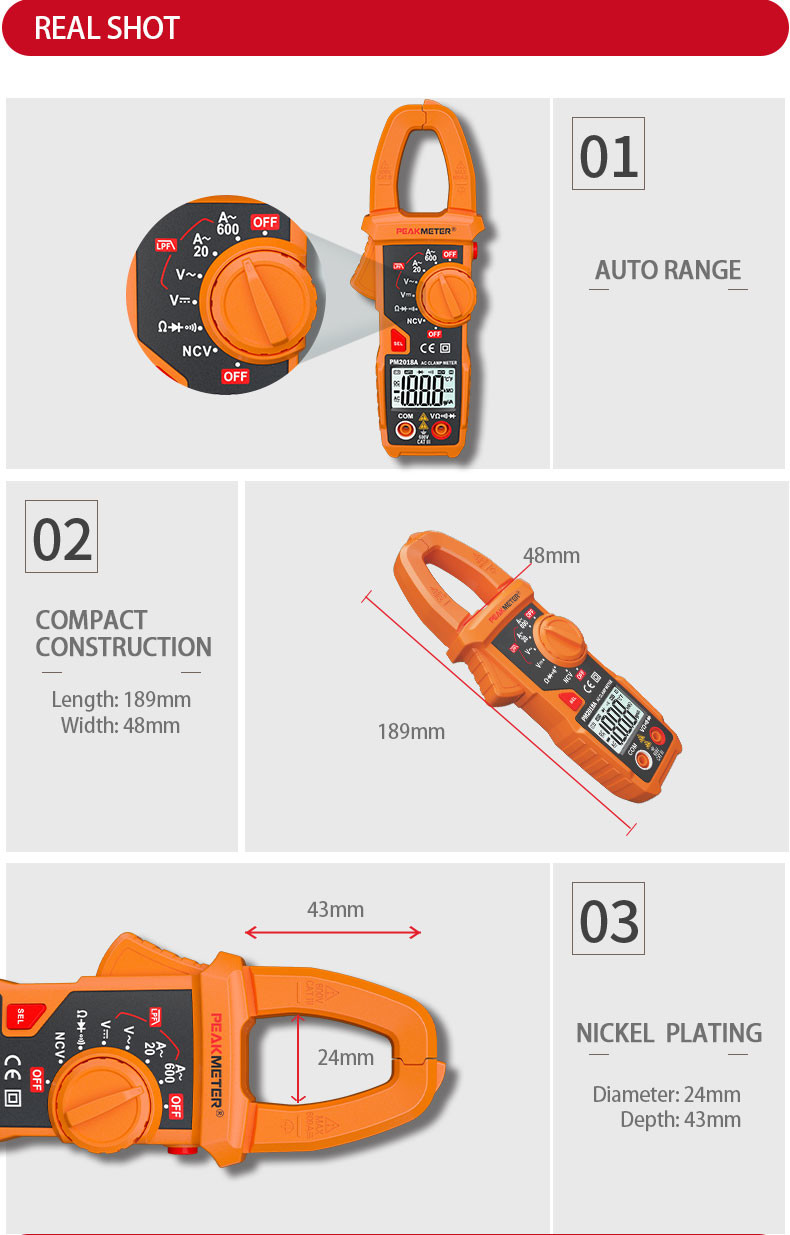

    Detailed Images of Digital AC Clamp Meter


    Digital Clamp Meter Measurement instrument tooling AC&DC Voltage NCV MeterDigital Clamp Meter Measurement instrument tooling AC&DC Voltage NCV MeterDigital Clamp Meter Measurement instrument tooling AC&DC Voltage NCV MeterDigital Clamp Meter Measurement instrument tooling AC&DC Voltage NCV Meter
