    Digital Multimeter, Instrument AC/DC DCA ACV ACC Capacitance Resistance

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8229
    Certification : CE
    Price : USD1- USD100
    Supply Ability : 50,000.00 per month
    Delivery Time : 5-35 days
    • Product Details
    • Company Profile

    Digital Multimeter, Instrument AC/DC DCA ACV ACC Capacitance Resistance

    Auto and Manual Range Digital Multimeter Humidity and Illumination Test Meter


    Features of Multi-function Digital Multimeter


    • Manual and Automatic Range
    • Relative Value Measurement
    • Noise, Illumination, Diode, Continuity test
    • Thermocouple temperature measurement
    • Measure AC&DC Voltage, Frequency, Duty, AC & DC Current, Resistance

    SpecificationsRangeAccuracy
    DC Voltage60mV/600mV/6V/60V/600V/1000V±(0.7%+2)
    AC Voltage60mV/600mV/6V/60V±(0.8%+3)
    600V±(1.0%+3)
    DC Current600μA/6000μA/60mA/600mA/6A±(1.2%+3)
    10A±(2.0%+10)
    AC Current600μA/6000μA/60mA/600mA/6A±(1.5%+3)
    10A±(3.0%+10)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.2%+5)
    60MΩ±(2.0%+5)
    Capacitance10nF/100nF/1000nF/10uF/100uF/1000uF/10mF±(3.0%+3)
    Frequency9.999Hz/99.99Hz/999.9Hz/9.999kHz/
    99.99kHz/999.9kHz/9.999MHz
    ±(1.0%+5)
    Noise40-100dB±3.5%dB at 94dB
    Illumination (Lux)4000/40000(5.0%+10)
    Humidity20-95%±5.0%RH
    Ambient Temperature0℃~40℃±2℃
    32℉~104℉±4℉
    Temperature Measurement with Thermocouple-20℃~0℃±5.0%
    0℃~400℃±1.0%
    400℃~1000℃±2.0%
    -4℉~32℉±5.0%
    32℉~752℉±1.0%
    752℉~1832℉±2.0%
    Feature
    Display6000 Counts
    Diode
    Continuity
    Illumination (Lux)
    Humidity
    Time
    Data Storage
    Back Light
    Manual and Automatic Range
    MAX/MIN/REL
    Data Hold
    General
    Power Supply4*1.5V AA Batteries
    Size204mm*94mm*57mm
    Weightabout 410g
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 1000V

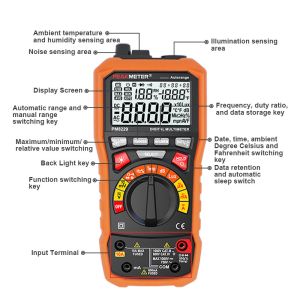

    Description of Multi-function Digital Multimeter

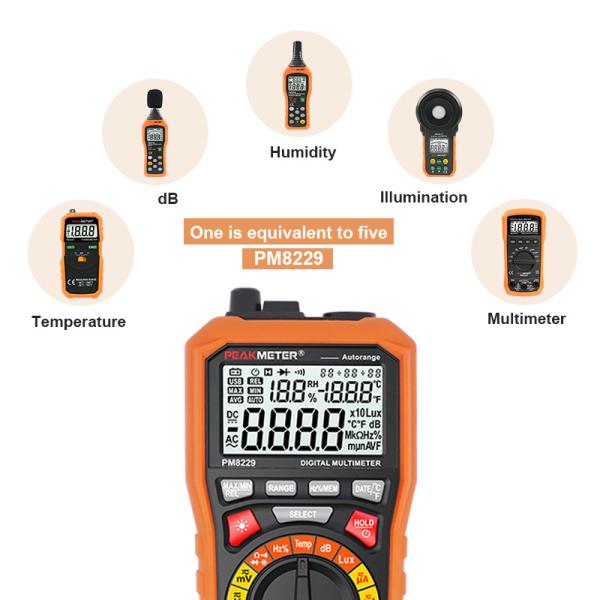

    The instrument is a hand-held intelligent multifunctional measurement instrument, integrating noise, illuminance, humidity, temperature and digital multimeter into one. With large LCD digital display (three sets of data display) and backlight, it’s easy for user to read, with overload protection and battery undervoltage indication. Whether for professionals, factories, schools, amateurs or family, it’s an ideal multi-functional instrument.


    • The instrument is equipped with manual and automatic range. In automatic range mode, the instrument will select the best range for the input signal detected, so it is convenient that the user does not need to re-select range when changing the measuring signal.
    • The instrument is equipped with backlight function for the convenience that the user accurately read the measurement results in places with bad lighting conditions.

    Digital Multimeter, Instrument AC/DC DCA ACV ACC Capacitance ResistanceDigital Multimeter, Instrument AC/DC DCA ACV ACC Capacitance ResistanceDigital Multimeter, Instrument AC/DC DCA ACV ACC Capacitance Resistance
