Auto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV Test

    Buy cheap Auto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV Test from wholesalers

    Buy cheap Auto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV Test from wholesalers
    • Buy cheap Auto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV Test from wholesalers

    Auto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV Test

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2018B
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Auto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV Test

    Auto Range Digital AC Clamp Meter 600A AC Current -40~1000℃ Temperature test


    Features of Digital AC Clamp Meter


    • 6000 counts display and Back Light
    • Auto Power Off and Auto Range
    • Continuity and NCV Test
    • Low Battery Indication
    • AC/DC Voltage: 600V
    • AC Current: 600A

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V±(0.5%+3)
    AC Voltage6V/60V/600V±(0.8%+5)
    AC Current
    (40-65Hz)
    6A/60A/400A±(2.5%+5)
    400A~600A±(3.0%+5)
    Resistance6KΩ/60KΩ/600KΩ/6MΩ/60MΩ±(0.8%+3)
    Frequency40Hz~1000Hz±(1.0%+5)
    Capacitance0.1uF/6000uF±(3.0%+5)
    LowZ1.0~600V±(0.8%+3)
    ℃/℉-40~1000℃±(1.0%+2)
    -40~1832°F±(1.0%+2)
    Features
    Display:6000counts
    Auto range
    Continuity
    Frequency(Clamp)
    Frequency(Voltage)
    LPF(1KHz-3dB)
    Low Volts
    Data Hold
    BackLight
    NCV
    Low Battery Indication
    Auto Power off
    Dual Display(ACV+ Freq,ACA+ Freq )
    General
    Power Supply2×1.5V AAA Batteries
    Weight181g
    Size189mm×64mm×34mm
    Jaw Sizeø24mm
    Safety RatingEN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ 600V

    Detailed Images of Digital AC Clamp Meter

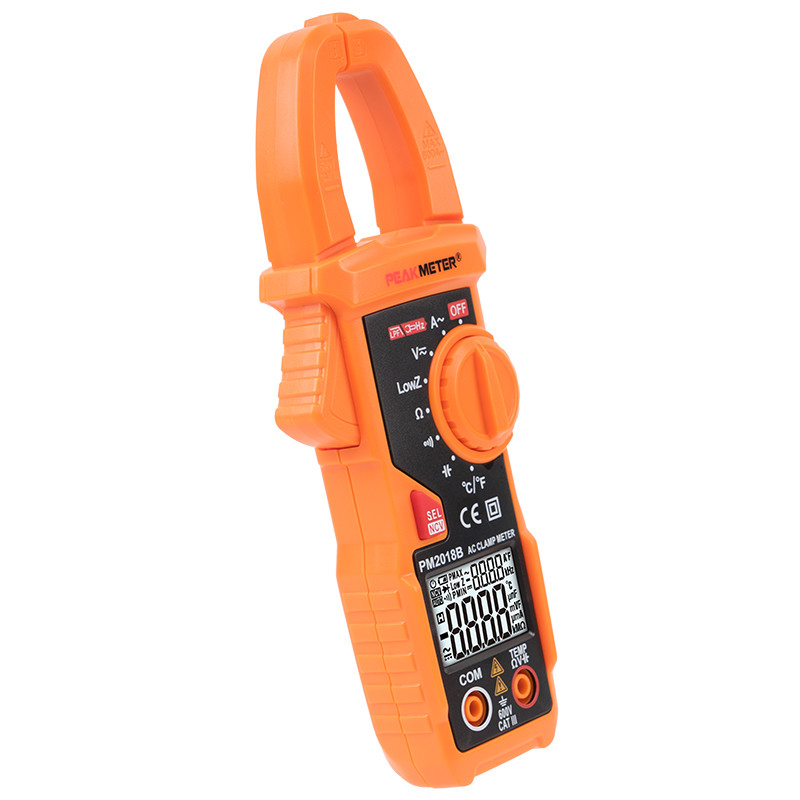

    PM2018B is an AC digital clamp meter, the structure of this series is smooth and ergonomic which with large screen dual display, 6000 counts and easy to use. Although the device is small, it has powerful functions. It has functions such as AC & DC voltage measurement, AC current measurement, NCV, and resistance measurement etc.


    • Display - The large-screen high-definition 6000 count display, show multi-functional measurement units and data, the backlight function enhances the brightness of the display.
    • NCV (non-contact voltage) - When the meter is close to the line with voltage, the buzzer will alarm.

    Description of Digital AC Clamp Meter


    Auto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV TestAuto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV TestAuto Range Digital AC Clamp Meter 600A AC Current LPF Continuity / NCV Test
