Handheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode Test

    Buy cheap Handheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode Test from wholesalers

    Buy cheap Handheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode Test from wholesalers
    • Buy cheap Handheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode Test from wholesalers

    Handheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode Test

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8215
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Handheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode Test

    600V Voltage 400mA Current 100kHz Frequency Handheld Pocket Digital Multimeter


    Features of Handheld Portable Digital Multimeter


    • AC&DC Voltage and AC&DC Current measurement
    • Resistance, frequency and capacitance measurement
    • 4000 counts display and low battery indication
    • Auto range and Auto power off function
    • Buzzer, continuity and diode test
    • Power supply: button cell CR2032 (3V)

    SpecificationRangeAccuracy
    DC Voltage4V/40V/400V/600V±(1.0%+3)
    AC Voltage4V/40V/400V/600V±(2.0%+5)
    DC Current400µA/40mA/400mA±(2.0%+5)
    AC Current400µA/40mA/400mA±(2.0%+5)
    Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(2.0%+5)
    Frequency5Hz/50Hz/500Hz/5kHz/50kHz/100kHz±(0.5%+5)
    Capacitance50nF/500nF/5uF/100uF±(5.0%+5)
    Features
    Display4000 counts
    Auto Range
    Low Battery Indication
    Buzzer
    Continuity
    Diode Test
    Auto Power Off
    General
    Power Supply1*3.0V CR2032 Button Battery
    Weight75g (Storage box not included)
    Size100mm*50mm*12mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Description of Handheld Portable Digital Multimeter

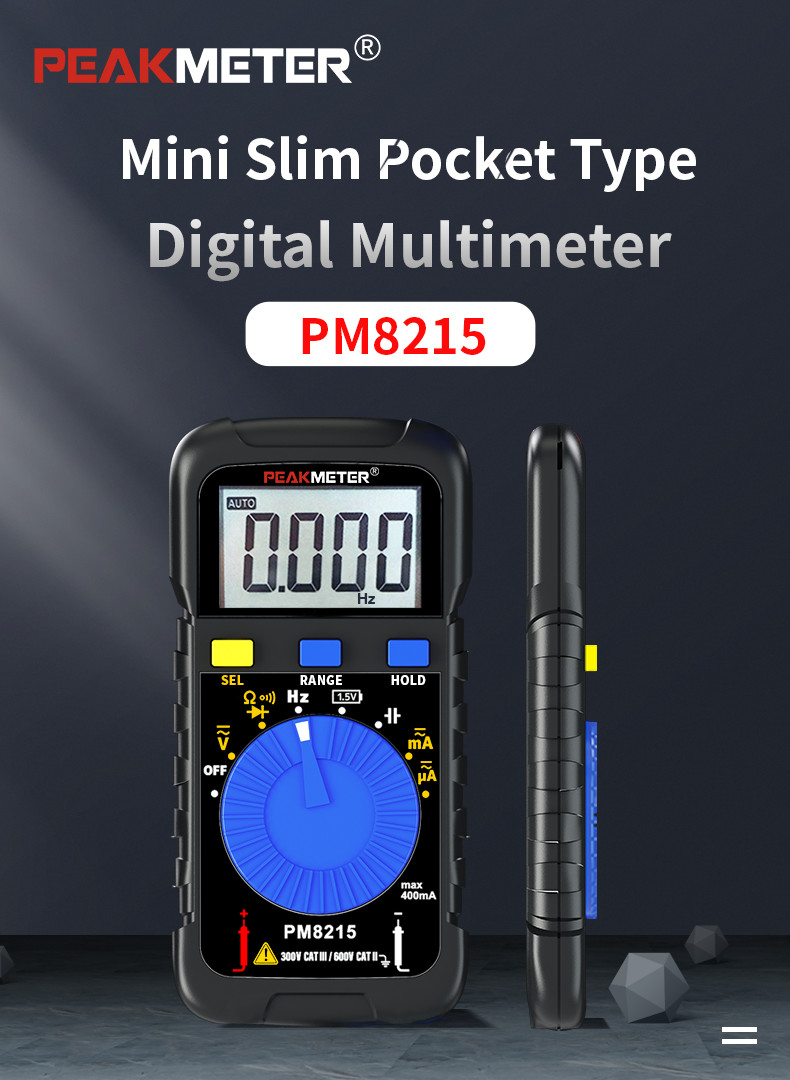

    PM8215 is a portable digital multimeter. It is fully functional and can be used to measure AC/DC voltage, AC/DC current, resistance, frequency, capacitance, and has functions such as low power indication, buzzer, continuity test, NCV, auto power off. This instrument has good stability, high accuracy, 4000 count display, with 400mA/250V fuse. This portable pocket multimeter is the ideal measurement instrument of a wide range of users.


    • Compact structure, easy to carry – Card-type structure design, small and light, can be put into pockets at will, easy to carry.
    • Full-featured – Complete measurement functions, AC and DC voltage, AC and DC current, resistance, frequency and capacitance.
    • Storage Box – Portable storage box, the meter and test probe are still compact after being installed, and the meter can also be measured in the storage box.

    Handheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode TestHandheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode TestHandheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode TestHandheld Portable Digital Multimeter AC DC 600V 400mA Buzzer Continuity Diode Test


    Services


    • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
    • Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
    • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
    • Customer can refer the maintenance order to get more information .
