    Analog Bar Digital High Voltage Insulation Tester Auto Calculate PI / DAR

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : MS5215
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Analog Bar Digital High Voltage Insulation Tester Auto Calculate PI / DAR

    Digital high Voltage Insulation Resistance Tester Auto calculate PI & DAR


    Features of Digital Insulation Resistance Tester


    • AC and DC voltage measurement Function
    • Resistance measurement Function
    • Analog bar and Digital display
    • Auto calculate PI and DAR
    • Back Light Function
    • Comparing Function
    • Auto Power Off
    • Timing Function

    Insulation Test
    Rated voltageMeasurement rangeOpen circuit voltageOutput circuit(specified load)RangeAccuracy
    250V0.0MΩ∽250GΩDC250V
    100%∽120%
    At 250KΩ load:
    1mA∽1.2mA
    0.0MΩ∽99.9GΩ±(5%+3)
    10.0GΩ∽50.0GΩ±(10%+5)
    50.10GΩ∽250.0GΩ

    ±(20%+10), >50GΩ:

    Humidity≤50%RH

    500V0.0MΩ∽500GΩDC500V
    100%∽120%
    At 500KΩ load:
    1mA∽1.2mA
    0.0MΩ∽9.99GΩ±(5%+3)
    10.0GΩ∽50GΩ±(10%+5)
    50.1GΩ∽500GΩ

    ±(20%+10), >50GΩ:

    Humidity≤50%RH

    1000V0.0MΩ∽1000GΩDC1000V
    100%∽120%
    At 1MΩ load:
    1mA∽1.2mA
    0.0MΩ∽9.99GΩ±(5%+3)
    10.0GΩ∽50GΩ±(10%+5)
    101GΩ∽500GΩ±(20%+10)
    501GΩ∽1000GΩ

    ±(30%+20),>50GΩ:

    Humidity≤50%RH

    2500V0.0MΩ∽2.50TΩDC2500V
    100%∽120%
    At 2.5MΩ load:
    1mA∽1.2mA
    0.0MΩ∽9.99GΩ±(5%+3)
    10.0GΩ∽100GΩ±(10%+5)
    101GΩ∽500GΩ±(20%+10)
    501GΩ∽2.50TΩ

    ±(30%+20),>100GΩ:

    Humidity≤50%RH

    5000V0.0MΩ∽5TΩDC5000V
    100%∽120%
    At 5MΩ load:
    1mA∽1.2mA
    0.0MΩ∽9.99GΩ±(5%+3)
    10.0GΩ∽100.0GΩ±(10%+5)
    101GΩ∽1TΩ±(20%+10)
    1.01TΩ∽5TΩ

    ±(30%+20),>100GΩ:

    Humidity≤50%RH

    Short circuit currentGreater than 3.0mA
    Voltage measurement
    Voltage typeTesting rangeResolution ratioAccuracy
    ACV30∽600V(50/60Hz)1V±(2%+3)
    DCV±30∽±600V1V±(2%+3)
    General
    Power Supply1.5V(LR14) *10 Batteries
    Size284mm×221mm×121mm
    Net weightApprox.1985g (not include batteries)
    Gross weight5900g
    Safety RatingEN61010-1, EN61557-1, EN61326-1 CAT. Ⅲ 1000V CAT.Ⅳ 600V

    Description of Digital Insulation Resistance Tester


    The MS5215 is a battery powered digital high voltage insulation resistance tester. The insulation resistance measurement of this instrument has 5 test voltage outputs, namely 250V, 500V, 1000V, 2500V, 5000V; the maximum value of the measurable resistance is 5TΩ, the maximum short-circuit current is 3mA, the polarization index (PI) and Dielectric Absorption Ratio (DAR) can be automatically calculated, no other settings are required.


    This instrument has the functions of automatic discrimination of AC and DC voltage, timing measurement, comparison, storage, backlight, automatic shutdown, automatic test prohibition and automatic discharge when the tested terminal is charged, which can protect the safety of testers. With its high precision, high stability and high reliability, this instrument is ideal for numerous overhauls, commissioning and preventive maintenance.

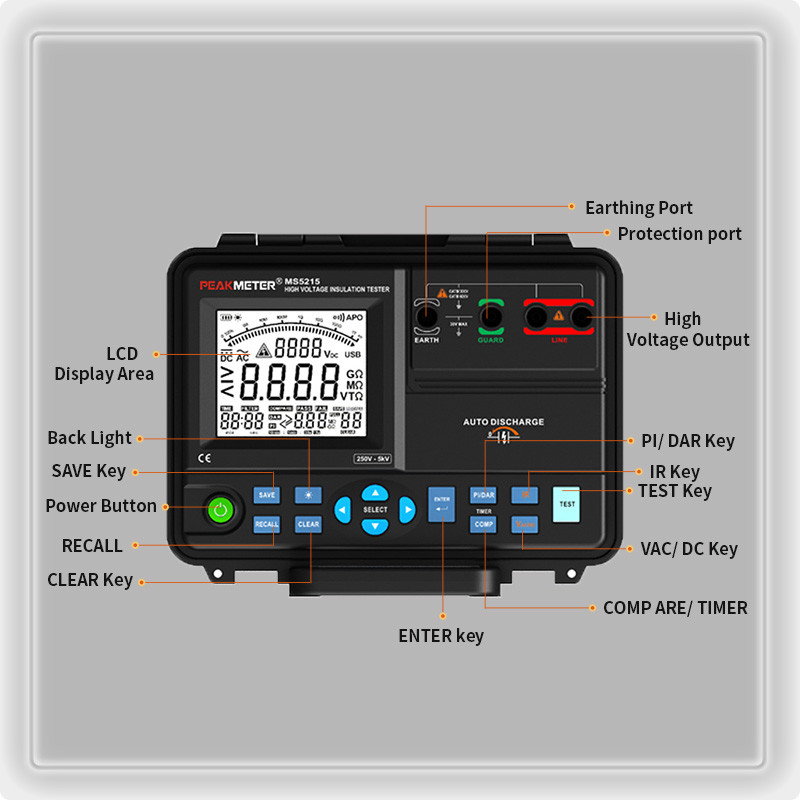

    • Display-It consists of an analog display, a main display and a secondary display. Large high-definition display with backlight function enables users to read clearly in dark environments.
    • Insulation measurement-Measurement maximum value, minimum value, average value, comparison upper limit value, comparison lower limit value, DAR, PI.
    • Data storage-The instrument can store up to 99 sets of data, and the new stored data will overwrite the original stored data when the data is stored. The stores data can be read and cleared according to user needs.

    Detailed Images of Digital Insulation Resistance Tester


    Analog Bar Digital High Voltage Insulation Tester Auto Calculate PI / DARAnalog Bar Digital High Voltage Insulation Tester Auto Calculate PI / DARAnalog Bar Digital High Voltage Insulation Tester Auto Calculate PI / DAR
