    RJ45 Handheld Cable Line Tester Digital Analog Signal Transmission And Continuity Test

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM6819A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    RJ45 Handheld Cable Line Tester Digital Analog Signal Transmission And Continuity Test

    RJ45 Handheld Cable Line Tester Digital Analog signal transmission and Continuity Test


    Features of RJ45 Cable Line Teste


    Features
    Wire TrackDirectly track wire type: RJ45, RJ11 Track other wire through the attachment
    Work CurrentEmitter 20mA∽90mA
    Receiver 40mA∽50mA
    Emitter Charging Current500mA
    Transmission Signal ModeDigital signal: multifrequency pulse
    Analog signal: audio pulse
    Maximum Datal Transmission Distance1000m
    Data Signal Detection Depth0∽2m
    Maximum Transmission Distance of Analog Signal300m
    Detection depth of analog signal0∽0.3m
    Continuity IndicationThe signal indicator is used as the path resistance indicator, one more indicator light will be on every 100Ω, and all lights will be on above 1K
    Continuity Testresistance value is less than 1K, it is considered as continuity
    Under Voltage IndicationTransmitter: less than 3.7V, LED flashing
    Receiver: less than 9V, LED flashing
    General
    Power SupplyEmitter: DC 1×3.7V
    Receiver: DC 1×9V 6LR61
    WeightEmitter: 144.6g
    Receiver: 179.6g
    SizeEmitter: 125mm×66mm×30mm
    Receiver: 212.5mm×45mm×28mm
    Safety RatingCE CAT.Ⅲ 600V RoHS


    Description of RJ45 Cable Line Tester


    PM6819A is a multifunctional handheld cable line tester. The transmitter of the meter is powered by a rechargeable lithium battery and has a battery undervoltage indication function. Its digital and analog wire-hunting functions can find metal wires buried in the ground or in walls. This instrument is a necessary test tool for telecommunication engineers, wiring engineers, network maintenance personnel, etc.


    • Line finding function: it can find the underground metal cable directly, and the line finding of RJ45, RJ11 and BNC interface can be done through the adapter.
    • When looking for the cable line, it is simple and fast without peeling the line skin, and it can identify the location of the line breakpoint.
    • Continuous (path) detection of conducting wire.
    • Low voltage prompt function.
    • The receiver has a light function.

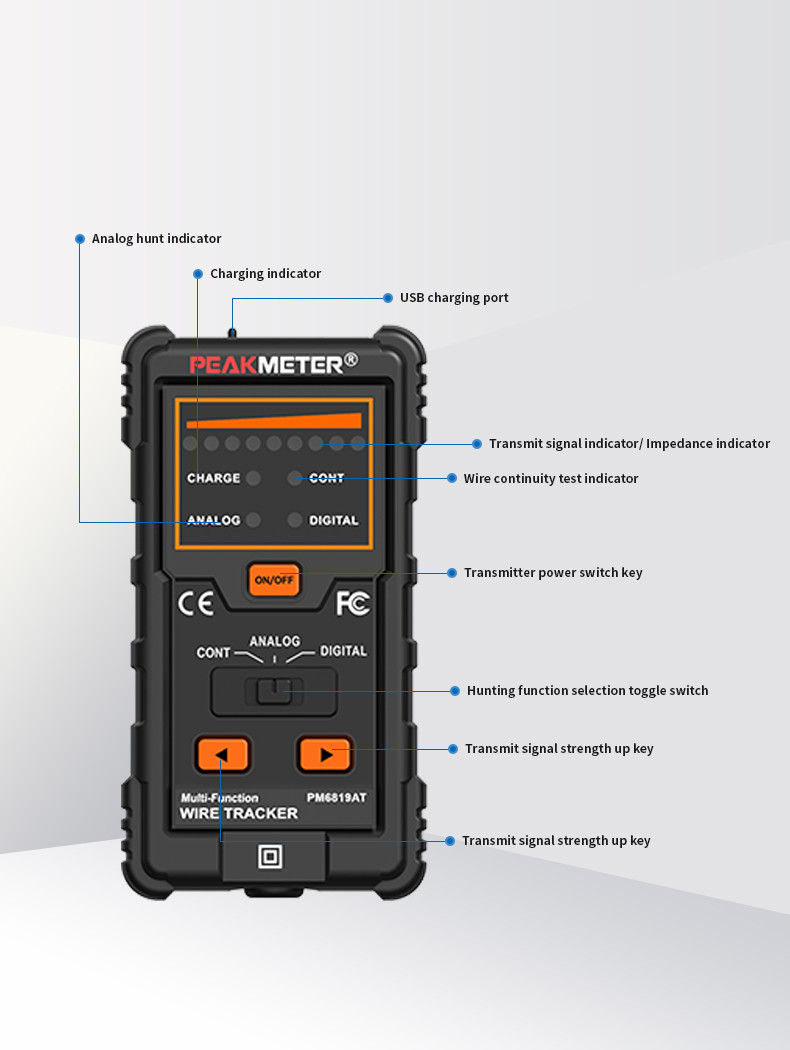

    Detailed Images of RJ45 Cable Line Tester


    RJ45 Handheld Cable Line Tester Digital Analog Signal Transmission And Continuity TestRJ45 Handheld Cable Line Tester Digital Analog Signal Transmission And Continuity TestRJ45 Handheld Cable Line Tester Digital Analog Signal Transmission And Continuity Test
