    Ture RMS Portable Clamp Meter 600V AC/DC 600A AC/DC For Solar Power System

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2108
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Ture RMS Portable Clamp Meter 600V AC/DC 600A AC/DC For Solar Power System

    600V AC/DC 600A AC/DC portable professional Clamp Meter measuring voltage and current for Solar Power System



    English User Manual:https://drive.google.com/open?id=1QPfuMB8L6i2Pvo4zQOOKwclPAJrWRvPp
    Peakmeter Photovoltaic System Solution:Peakmeter Photovoltaic System Solution.pdf


    Features of Digital Clamp Meter


    • AC/DC current, AC/DC voltage, resistance, frequency, duty cycle, capacitance etc.
    • Auto and Manual range.
    • Inrush Current, auto zero function (at DCA range).
    • Measuring AC/DC voltage up to 600V.
    • Measuring 600V AC/DC, 600A AC/DC
    • Automatically select measurement and range.
    • Overload protection for the whole measurement range.
    • Data hold function low power indication, and auto power off
    • Professional AC Voltage Detector
    • High quality and easy-to-use.
    • Mini and easy to carry

    SpecificationsRangeAccuracy
    AC Current66A/600A±(3.0%+10)
    Inrush Current66A/600A±(10%+60)
    DC Current66A/600A±(3.0%+10)
    DC Voltage660mV/6.6V/66V±(0.8%+3)
    600V±(1.0%+5)
    AC Voltage660mV±(1.5%+10)
    6.6V/66V±(1.2%+5)
    600V±(1.5%+10)
    Resistance660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ±(1.2%+2)
    66MΩ±(2.0%+5)
    Frequency (by A range)660Hz/1kHz±(1.5%+5)
    Frequency (by V range)660Hz/6.6kHz/10kHz±(1.5%+5)
    Duty10%~95%±3.0%
    Capacitance6.6μF/66μF/660μF/6.6mF/66mF±(4.0%+3)
    Feature
    Display6600 counts
    True RMS
    Auto and Manual Range
    MAX/MIN
    Back Light
    Work Light
    Data Hold
    Inrush Current measurement
    Diode Test
    Continuity Test
    Auto Power Off
    General
    Power Supply3*1.5V AAA Batteries
    Size208mm*78mm*35mm
    Jaw Sizeφ26mm
    Weight245g
    Safety RatingEN61010-1, EN61010-2-032, EN61326, CAT. Ⅲ 600V

    Product Description of Digital Clamp Meter


    PM2108 is a portable professional measuring instrument with LCD and back light easily reading. The ‘single-hand operation’ design for the range switch makes measurement simple and easy. Overload protection and low battery indication are provided. It is an ideal multi-function instrument for Solar Panel measurement. The meter can perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as continuity and diode test. Both auto range and manual range are available. This instrument is equipped with reading hold function, true root means square value measuring function, inrush current measuring function, auto zero function, maximum value and minimum value functions.


    • The meter can perform measurement of AC/DC voltage and current, current, resistance, frequency, duty, capacitance, as well as continuity and diode test.
    • This meter is equipped with reading hold function.
    • This meter is equipped with maximum value measuring function.
    • This meter can measure frequency by clamp.

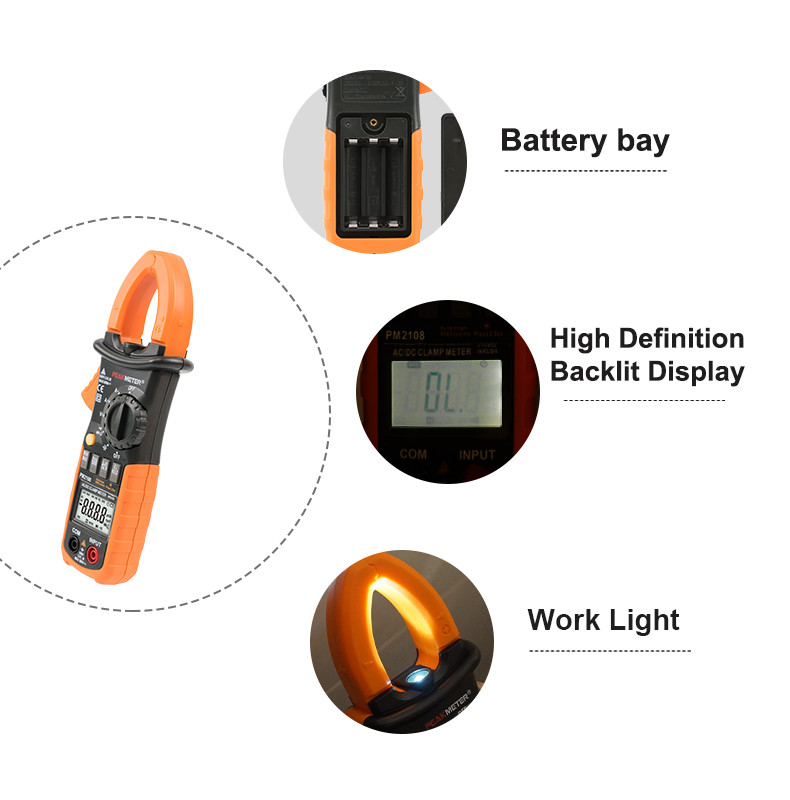

    Detailed Images of Digital Clamp Meter


    Ture RMS Portable Clamp Meter 600V AC/DC 600A AC/DC For Solar Power SystemTure RMS Portable Clamp Meter 600V AC/DC 600A AC/DC For Solar Power SystemTure RMS Portable Clamp Meter 600V AC/DC 600A AC/DC For Solar Power System
