Auto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A Current

    Buy cheap Auto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A Current from wholesalers

    Buy cheap Auto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A Current from wholesalers
    • Buy cheap Auto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A Current from wholesalers

    Auto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A Current

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2128
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Auto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A Current

    AC/DC Digital Clamp Meter 1000A Current Solar Clamp Meter 1000V Voltage Auto Range True-RMS


    Peakmeter Photovoltaic System Solution:Peakmeter Photovoltaic System Solution.pdf


    Features of Solar Digital Clamp Meter


    • Max. voltage between measurement terminal and ground: 1000V DC or 1000VAC
    • Battery under-voltage indication and Automatic shutdown
    • Low impedance measurement to make result more accurate
    • Full range with overload protection
    • NCV: When voltage > 90V AC, buzzer and light will alarm
    • AC/DC current (up to 1000A), ideal for solar system testing
    • Complies with EN-61010-1, EN61010-2-030
    • Select measurement function and range automatically
    • Overload protection throughout the range
    • Display: 6000 counts LCD display
    • Continuity, VFD, NCV test

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V/1000V±(0.5%+5)
    AC Voltage6V/60V/600V±(0.8%+5)
    1000V±(1.0%+5)
    AC Current60A/600A/1000A±(2.5%+8)
    DC Current60A/600A/1000A±(3.0%+10)
    Resistance600Ω/6KΩ/60KΩ/600KΩ/6MΩ±(1.0%+3)
    60MΩ±(1.2%+3)
    Capacitance60nF/600nF/6uF/60uF/600uF/6mF/60mF±(4.0%+3)
    Frequency100Hz/1000Hz/10KHz±(1.0%+5)
    1%~99%±(3.0%+2)
    ℃/℉-20~1000℃±(1.0%+2)
    -4~1832℉±(1.0%+2)
    LowZDCV1000V±(1.0%+10)
    ACV1000V±(2.0%+20)
    DCμA200μA±(0.8%+3)
    Feature
    Display6000 counts
    Auto and Manual Range
    Relative Measurement
    Back Light
    Continuity
    DCμA
    Analogue Bar Graph
    Low Battery Indication
    Data Hold
    True RMS
    NCV
    VFD
    General
    Power Supply3*1.5V AAA Batteries
    Size246mm*85mm*40mm
    Jaw Sizeφ35mm
    Weight314.5g
    Safety RatingEN61010-1, EN61010-2-030, EN61010-2-032, CAT Ⅲ 1000V

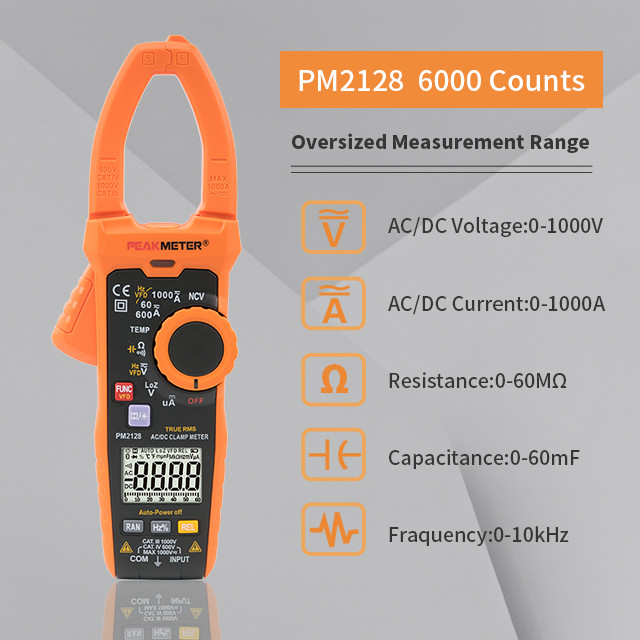

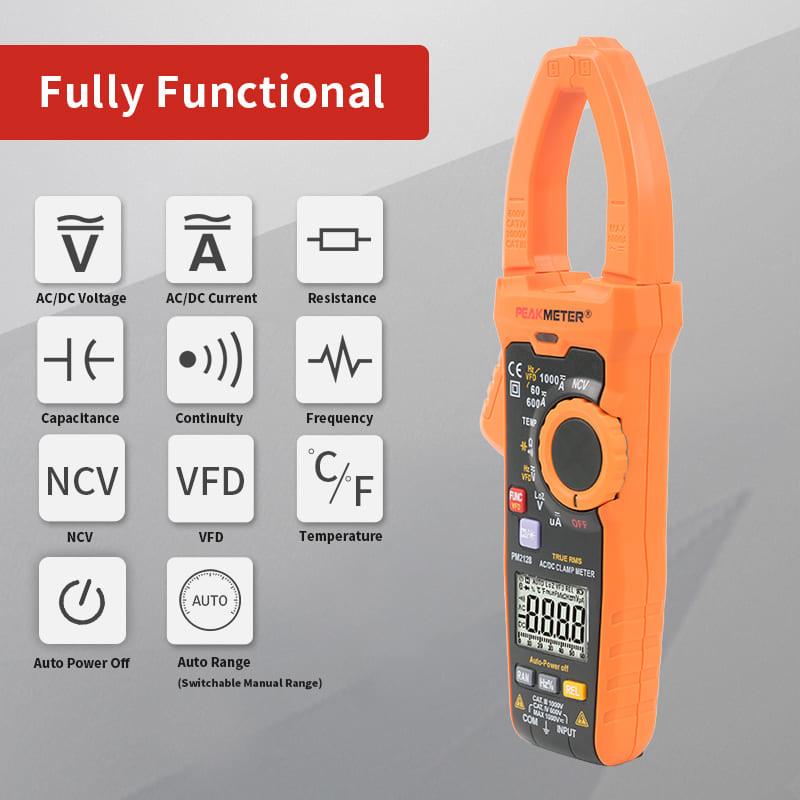

    Detailed Images of Solar Digital Clamp Meter


    PM2128 clamp multimeter has frequency converter VFD, which enables the instrument to measure frequency conversion voltage or current in the occasion of high frequency interference signal. This meter has a large HD backlit screen, 6000 counts and T-RMS. It has the functions of measuring AC and DC voltage, 1000A AC and DC current, resistance, capacitance, temperature, low impedance voltage and NCV. This meter has overload protection for full range.


    • AC & DC Voltage and Current-Can measure 1000V AC & DC Voltage, 1000A AC & DC Current.
    • Display-The combination of digital and analog bars, 6000 counts high-definition LCD display, backlight function adds brightness to the display, and the reading is clearer.

    Description of Solar Digital Clamp Meter


    Auto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A CurrentAuto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A CurrentAuto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A CurrentAuto Range TRMS Digital Clamp Meter Solar Clamp Meter AC/DC 1000V Voltage 1000A Current
