    30000 Counts T-RMS Digital Multimeter High Accuracy For Solar Panel System

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8237
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    30000 Counts T-RMS Digital Multimeter High Accuracy For Solar Panel System

    30000 counts T-RMS Digital Multimeter High accuracy Meter for Solar Panel System measurement


    Peakmeter Photovoltaic System Solution:Peakmeter Photovoltaic System Solution.pdf


    Features of Solar Multimeter


    • 30000 counts display and automatic display of unit symbols according to the measurement function positions
    • Measure AC&DC Voltage, AC&DC Current, AC+DC Voltage, resistance, frequency, capacitance, hFE, etc.
    • Maximum voltage allowed between measurement ends and earth: 1000V DC or 1000V AC RMS
    • Input polarity in indication: The “-“ number is automatically displayed
    • Analog bar and digital dual display, True RMS, 30000 counts high accuracy
    • Filter harmonic (LPF function)
    • Upload data to computer with USB interface
    • Measuring transistor with multifunctional test stand
    • Fast-fusing fuse: 600mA/1000V and 10A/1000V
    • Measuring and record line voltage
    • Combined display of digital and analog bars
    • Low Battery Indication and Auto Power Off
    • Over-range indication: “OL” is displayed
    • MAX/MIN, Data Hold, Backlight

    SpecificationsRangeAccuracy
    DC Voltage300mV±(0.1%+5)
    3V/30V/300V±(0.05%+5)
    1000V±(0.1%+5)
    AC Voltage300mV±(1.5%+30)
    3V/30V±(1.2%+50)
    300V±(2.0%+50)
    1000V±(3.0%+50)
    DC Current300μA/3mA/30mA/300mA±(0.5%+10)
    10A±(1.2%+50)
    AC Current300μA/3mA/30mA/300mA/10A±(3.0%+50)
    Resistance300Ω/3kΩ/30kΩ/300kΩ±(0.5%+10)
    3MΩ±(0.8%+10)
    30MΩ±(1.5%+10)
    300MΩ±(3.0%+10)
    Capacitance30nF/300nF/3uF/30uF±(3.0%+5)
    300uF/3mF±(4.0%+5)
    30mF±(10%+5)
    300mF±(20%+5)
    Frequency10Hz~300MHz±(0.01%+5)
    Duty0.1%~99.9%±(2.0%+5)
    Feature
    Display30000 counts
    Manual and Automatic Range
    Relative measurement
    USB Interface
    Low-pass filter
    MAX/MIN
    Data Hold
    Back Light
    Diode test
    hFE
    Continuity
    General
    Power Supply4*1.5V AA Batteries
    Size204(L)×94(W)×57(H)mm
    Weight429g
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 1000V

    Description of Solar Multimeter


    PM8237 is a 30000 counts True RMS Digital Multimeter, it an ideal tool for solar power system maintenance. The hand-held digital multimeter is convenient for technicians who work in outdoor environments. It can measure AC/DC 1000V Voltage, AC/DC 10A Current, 30MΩ Resistance, 300MHz Frequency and 300mF Capacitance. The instrument has relative measurement, low-pass filter, USB interface, max/min value and data hold functions. It also has fast-fusing fuse 600mA/1000V and 10A/1000V.


    • USB function - Instrument with USB function, the meter measurement data can be uploaded to the computer through the USB interface for display, recording and analysis.

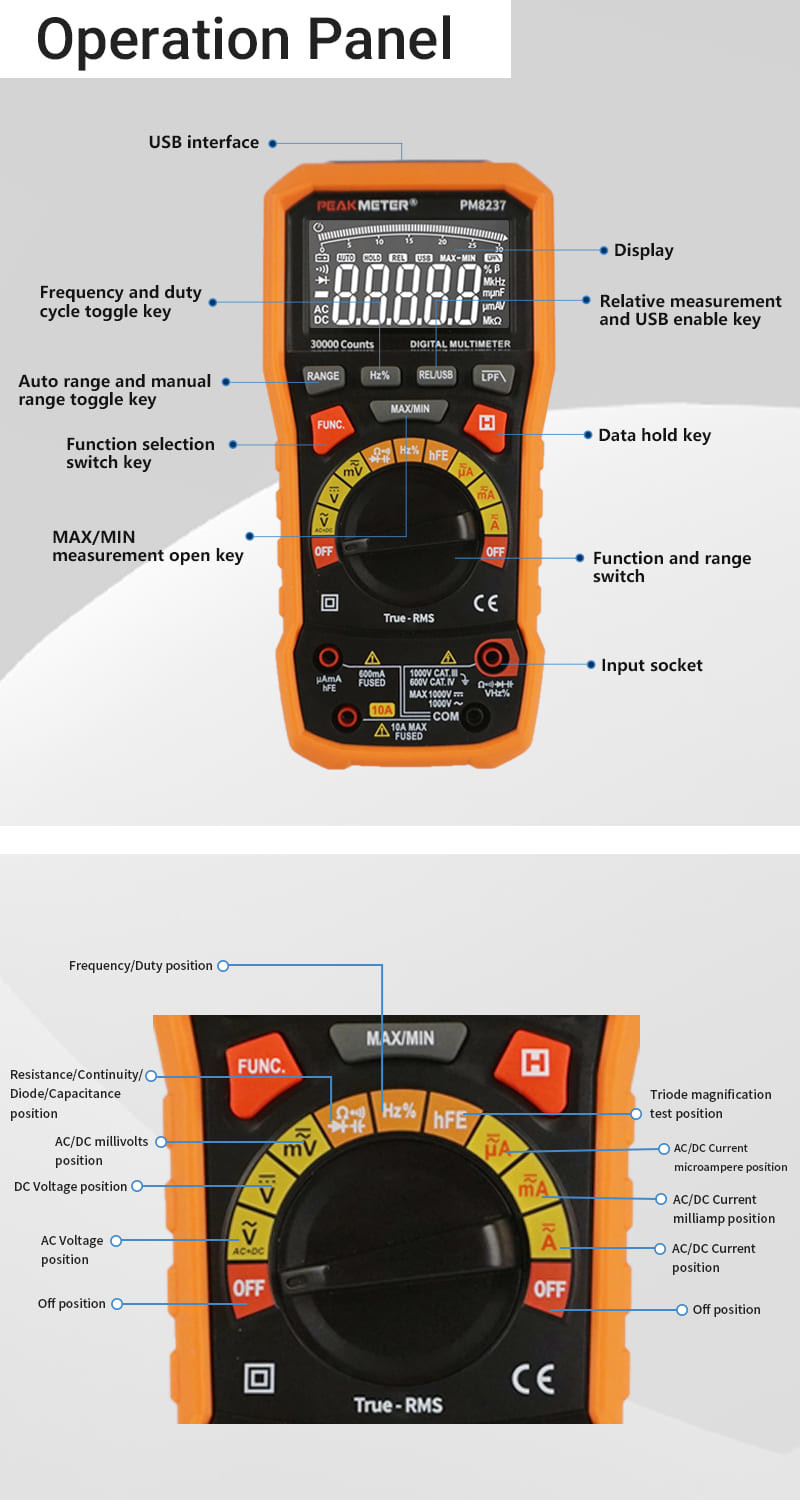

    • Display - High-precision 30000 counts LCD screen display, combined with digital and analog bars, displays the corresponding function, measurement value and unit during measurement.

    30000 Counts T-RMS Digital Multimeter High Accuracy For Solar Panel System30000 Counts T-RMS Digital Multimeter High Accuracy For Solar Panel System30000 Counts T-RMS Digital Multimeter High Accuracy For Solar Panel System30000 Counts T-RMS Digital Multimeter High Accuracy For Solar Panel System


    Services


    • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface) , and delivery fee will be borne by customer.
    • Material and service fee will be charged when warranty is expired, and delivery fee will be charged .
    • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs .
    • Customer can refer the maintenance order to get more information .
