Digital Multimeter Capacitance Meter Low Voltage Indicating With Transistor Measurement

    Buy cheap Digital Multimeter Capacitance Meter Low Voltage Indicating With Transistor Measurement from wholesalers

    Buy cheap Digital Multimeter Capacitance Meter Low Voltage Indicating With Transistor Measurement from wholesalers
    • Buy cheap Digital Multimeter Capacitance Meter Low Voltage Indicating With Transistor Measurement from wholesalers
    • Buy cheap Digital Multimeter Capacitance Meter Low Voltage Indicating With Transistor Measurement from wholesalers

    Digital Multimeter Capacitance Meter Low Voltage Indicating With Transistor Measurement

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2108A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Digital Multimeter Capacitance Meter Low Voltage Indicating With Transistor Measurement

    Multifunctional Digital Multimeter Capacitance Meter With Voltage, Current And Transistor Measurement


    Features of Multi-functional Digital Multimeter


    • Overrange protection is provided for all available.
    • Auto range and manual range options are available
    • Auto power off time: 30 min
    • Unit indication: function and unit

    SpecificationsRangeAccuracy
    DC Voltage400mV±(1.0%+2)
    4V/40V/400V±(0.8%+3)
    600V±(1.0%+5)
    AC Voltage4V/40V/400V±(0.8%+3)
    600V±(1.0%+5)
    AC Current40A/400A±(3.0%+6)
    DC Current40A/400A±(3.0%+6)
    Resistance400Ω/4kΩ/40kΩ/400kΩ±(0.8%+3)
    4MΩ/40MΩ±(1.2%+3)
    Capacitance40nF/400nF/4µF/400µF/4000µF±(4.0%+3)
    Frequency99.99Hz/999.9Hz (Pass A)±(1.5%+5)
    99.99Hz/999.9Hz/9.999kHz (Pass V)±(1.5%+5)
    9.999Hz/99.99Hz/999.9Hz/999.9Hz/9.999kHz/
    99.99kHz/999.9kHz/9.999MHz (Pass Hz/Duty)
    ±(0.5%+2)
    Duty0.1~99.9%±3.0%
    Features
    Display6000 counts
    Auto and Manual Range
    Data Hold
    Work Light
    Max/Min
    Continuity
    Back Light
    General
    Power Supply3*1.5V AAA Batteries
    Net weight237g (batteries are not included)
    Gross weight476g
    Size209mm*70mm*37mm
    Jaw SizeØ26mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Description of Multi-functional Digital Multimeter


    The product features possess current measurement and simultaneously display the current frequency, voltage measurement with frequency display, voltage and current can be measured at the same time, the display screen shows the voltage and current . Its designed is according to EN61010-1, EN61010-2-032, and CAT.III600V Concerning Safety Requirements.


    • Mini and easy to carry
    • High quality and easy-to-use.
    • This meter is equipped with auto zero function (at DCA range)
    • Maximum allowable voltage between the measuring terminal and the Earth:660V DC or 660V AC.

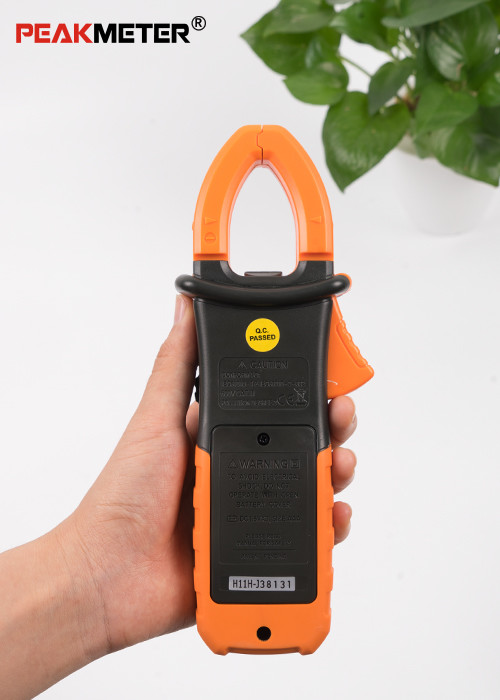

    Detailed Images of Multi-functional Digital Multimeter


    Digital Multimeter Capacitance Meter Low Voltage Indicating With Transistor MeasurementDigital Multimeter Capacitance Meter Low Voltage Indicating With Transistor MeasurementDigital Multimeter Capacitance Meter Low Voltage Indicating With Transistor Measurement
