    Auto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurement

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2008B
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Auto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurement

    Auto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurement


    Features of Digital Clamp Meter Multimeter


    • Measure AC&DC voltage, AC current, Resistance, Capacitance, Frequency, Temperature
    • 6000 counts display and Data Hold
    • Diode and Continuity Test
    • Work Light and Back Light
    • Auto and Manual Range

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V±(0.5%+3)
    AC Voltage6V/60V/600V±(0.8%+5)
    AC Current6A/60A/600A±(2.5%+5)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(1.0%+3)
    60MΩ±(2.0%+3)
    Capacitance10nF/100nF/1uF/10uF/100uF±(3.0%+5)
    1mF/10mF±(4.0%+5)
    100mF±(5.0%+5)
    Frequency10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz±(0.5%+5)
    Duty1%~99%±(3.0%+2)
    Temperature-20℃~1000℃±(1.0%+2)
    -4℉~1832℉
    Features
    Display6000 counts
    Data Hold
    Back Light
    Inrush Current test
    LPF
    MAX/MIN
    Flash Light
    Diode Test
    Continuity Test
    Auto Power Off
    General
    Power Supply3*1.5V AAA Battery
    Size205mm*71mm*35mm
    Jaw Sizeφ23mm
    Weight340g
    Safety RatingEN61010-1, EN61010-2-032, EN61326, CAT Ⅲ 600V

    Description of Digital Clamp Meter Multimeter


    PM2008B is a AC digital clamp meter, it is stable, safe and reliable. The circuit of the instrument takes integrated circuit as the cire and is equipped with a full range overload protection circuit, AC/DC voltage, temperature, frequency, resistance, capacitance, diode and open-closed circuit measurement. This clamp meter has MAX/MIN, LPF measurement, auto range and manual range switch, inrush current measurement, backlight, and data hold function. It is a superior instrument special for electricians.


    • AC DC Voltage, AC Current, Resistance, Capacitance, Frequency, Temperature measurement
    • Data Hold, Back Light, Inrush current test, Auto and Manual Range, Maximum/minimum value, Flash light
    • Full range overload protection
    • Unit display: display of function and electricity unit

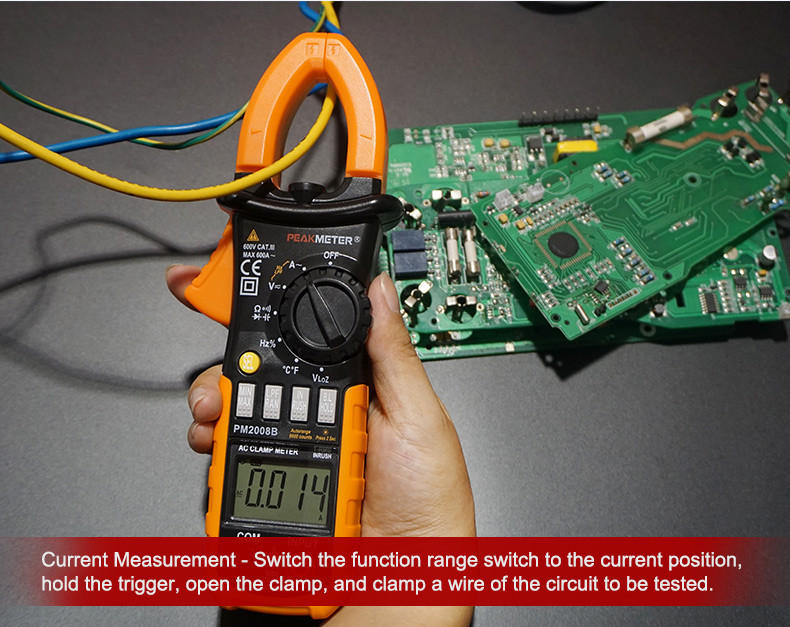

    Detailed Images of Digital Clamp Meter Multimeter


    Auto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurementAuto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurementAuto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurementAuto and Manual Range Digital Clamp Meter T-RMS INRUSH Current meter MAX MIN values measurement
