USB Interface RCD Loop Tester Multimeter Stable Performance For GFCI

    Buy cheap USB Interface RCD Loop Tester Multimeter Stable Performance For GFCI from wholesalers

    Buy cheap USB Interface RCD Loop Tester Multimeter Stable Performance For GFCI from wholesalers
    • Buy cheap USB Interface RCD Loop Tester Multimeter Stable Performance For GFCI from wholesalers
    • Buy cheap USB Interface RCD Loop Tester Multimeter Stable Performance For GFCI from wholesalers

    USB Interface RCD Loop Tester Multimeter Stable Performance For GFCI

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM5910
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    USB Interface RCD Loop Tester Multimeter Stable Performance For GFCI

    RCD Loop Resistance Tester Multimeter With USB Interface For GFCI


    English User Manual:https://drive.google.com/open?id=1sf9LsOu_x0tWCr9Yo0qIbZqYqJNVH2i4


    Features of RCD Loop Resistance Tester


    • Trip-out current measurement
    • Trip-out time measurement
    • Contact voltage measurement
    • Loop resistance measurement
    • AC voltage measurement :0V ---- 440V
    • Frequency measurement:DC 45Hz----65Hz

    SpecificationsRangeAccuracy
    Tripping-timex1 IΔN300(slow 500ms)±3ms
    x5 IΔN40ms(slow 150ms)±3ms
    Tripping Current(0.2-1.1)IΔN±0.1IΔN
    Contact Voltage0∽99.9V±(10%+0.2V)
    Alternating Voltage
    (UL-N, UL-L, UL-E)
    0∽440V±(3%+3V)
    FrequencyDC, 45∽65Hz±1Hz
    Loop Resistance0.1Ω∽199.9Ω±(10%+0.2d)
    200∽1999Ω±(10%+0.2d)
    2000∽9.99kΩ±(10%+0.2d)
    RL Current test0.5 IΔN±(10%+10d)
    Multiplying Power of Measuring Currentx0.5, x1, x5
    Current Level (IΔN)10mA,30mA,100mA,300mA,500mA
    Trigger Phase Angle0° or 180°
    Feature
    Data Logging and Recall1000Groups
    Auto Power Off
    Display Back Light
    USB 2.0Interface
    Low Battery Display
    General
    Power Supply6×1.5V AA batteries
    Size194mm×150mm×72mm
    Net weight960g(batteries are not included)
    Gross weight2223g
    Safety RatingEN61010-1, CAT. Ⅲ 600V

    Product Description of RCD Loop Resistance Tester


    The RCD Tester brings the latest technology into an instrument which is compact, firm, durable, simple to use and convenient to carry. It can measure trip-out current, trip-out time, loop resistance, and online voltage, frequency measurement etc. It's widely used in Electricity, Aarchitect, Electrical Installation area etc. It complys with IEC/EN 61010-1 1000V CAT II, 600V CAT III safety standards. Max common mode voltage: 600V AC RMS. High speed Microprocess ICs to make sure its reliability . stability and accuracy.It is the ideal tool for electrical inspection and repair..


    • Comply with IEC/EN 61010-1 1000V CAT Ⅱ, 600V CAT Ⅲ Safety Standards
    • Maximum common mode voltage: 600V AC RMS
    • Display method: it is displayed on the LCD with maximum value at 6000
    • Measuring range selection: auto/manual measuring range
    • Frequency detection: auto

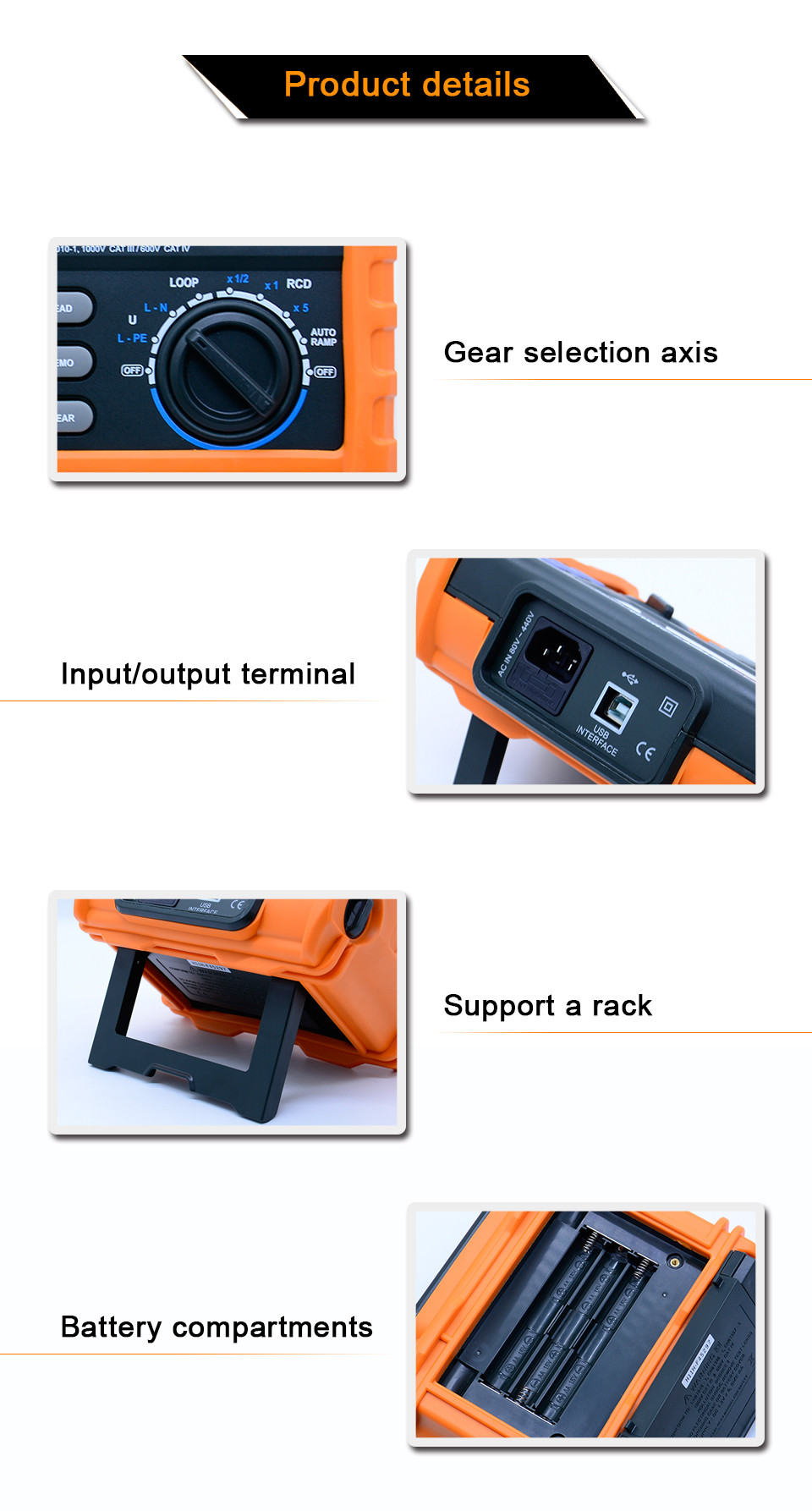

    Detailed Images of RCD Loop Resistance Tester

    USB Interface RCD Loop Tester Multimeter Stable Performance For GFCIUSB Interface RCD Loop Tester Multimeter Stable Performance For GFCI


    Our Target


    We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.


    R&D Team


    Our R&D team have over 20 years R&D experience in instrument industry .


    Mission


    Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
