    High Voltage Digital Insulation Resistance Tester With DCV And ACV Detection

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM5203
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    High Voltage Digital Insulation Resistance Tester With DCV And ACV Detection

    Digital Insulation Resistance Tester With DCV And ACV Detection , Auto Calculate PI And DAR


    English User Manual:https://drive.google.com/open?id=1k4JG7B-dJA5nLlMsJsyu8wilyCodOUTO

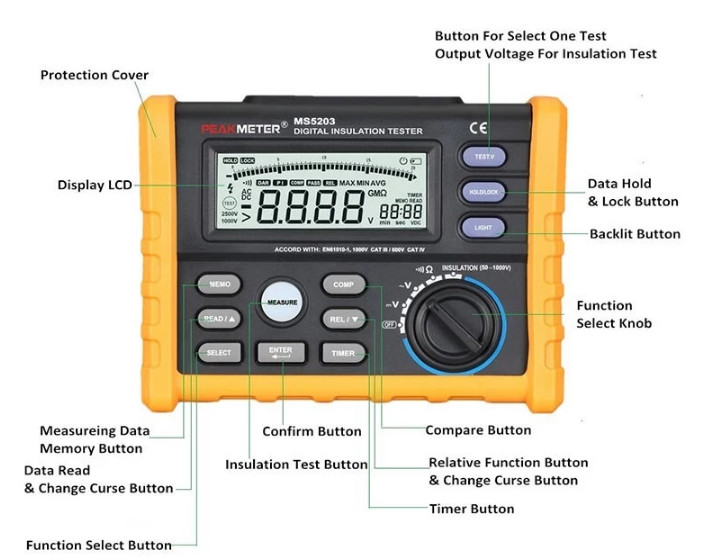

    Features of Digital Insulation Resistance Tester


    • Storing Test Data, Reading Test Data, Delete Data, Compare Function
    • Relation Measurement (Non-insulation test)
    • Low Battery Indication, Auto Power Off
    • Measuring DC Voltage/AC Voltage
    • Auto discharge for capacitive load
    • Hold Function (Non-insulation test)
    • Digital and Analog display
    • Measuring Resistance
    • Insulation Test Lock
    • Timer Function
    • MAX/MIN/AVG
    • Insulation Test
    • Continuity test
    • DAR & PI

    Insulation Test
    Source Output VoltageRangeAccuracy
    50V(0∽+20%)0.01MΩ∽50MΩ±(3%+5)
    100V(0∽+20%)0.01MΩ∽100MΩ±(3%+5)
    250V(0∽+20%)0.01MΩ∽250MΩ±(3%+5)
    500V(0∽+20%)0.01MΩ∽500MΩ±(3%+5)
    1000V(0∽+20%)0.01MΩ∽1000MΩ±(3%+5)
    1.00MΩ∽5.00GΩ±(5%+0.1GΩ)
    5.00MΩ∽10.00GΩ±(10%+0.2GΩ)
    Short Circuit Current2.0mA
    Multimeter Function
    DC Voltage Test0.1∽1000V±(0.5%+5)
    AC Voltage Test0.1∽750V±(1.5%+5)
    Continuity0.1Ω∽200Ω±(1%+5)
    General
    Power Supply6×1.5V AA batteries
    Size190(L)mm×145(W)mm×70(H)mm
    Net weight855g(not include batteries)
    Gross weight2041g
    Safety RatingEN61010-1, EN61557-1, EN61326-1 CAT. Ⅲ 1000V CAT. Ⅳ 600V

    Description of Digital Insulation Resistance Tester


    • Checking the insulation of High-Voltage Electrical Equipment. (Electric Motor, Transformer,Cable,etc.)
    • Calculates PI (Polarization Index) and DAR automatically.(Dielectric Absorption Ratio)
    • Choose 50V-1000V Voltage to test target insulation.
    • AC/DC Voltage measurement and Continuity test.
    • It can measure up to 10GΩ resistance.
    • Display Back-light and Auto power-off.
    • Short current up to 1.8mA.
