DC / AC Current Auto Range Digital Multimeter High Precision Stable Performance

    Buy cheap DC / AC Current Auto Range Digital Multimeter High Precision Stable Performance from wholesalers

    Buy cheap DC / AC Current Auto Range Digital Multimeter High Precision Stable Performance from wholesalers
    • Buy cheap DC / AC Current Auto Range Digital Multimeter High Precision Stable Performance from wholesalers
    • Buy cheap DC / AC Current Auto Range Digital Multimeter High Precision Stable Performance from wholesalers
    • Buy cheap DC / AC Current Auto Range Digital Multimeter High Precision Stable Performance from wholesalers

    DC / AC Current Auto Range Digital Multimeter High Precision Stable Performance

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8232
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    DC / AC Current Auto Range Digital Multimeter High Precision Stable Performance

    Hand - Held Auto Range Digital Multimeter With DC / AC Current / Voltage , Resistance And Diode Tester


    English User Manual:https://drive.google.com/open?id=10YGnADqfe6X_JjI6uzPUcFQwS-S2bRJ6

    Features of Auto Range Digital Multimeter


    • Diode test
    • Data hold
    • Backlight
    • Lighting
    • Auto-ranging
    • Buzzer on-off test
    • Auto power off
    • Mini handheld design
    • Relative measurement
    • Non-contact voltage test
    • CAT.III 600V safety standard
    • Full range of overload protection
    • Scope of application: Agricultural, Industrial, Home appliance

    SPECIFICATIONSRANGEACCURACY
    DC Voltage2V/20V/200V±(0.5%+3)
    600V±(0.8%+5)
    AC Voltage2V/20V/200V±(0.8%+3)
    600V±(1.0%+5)
    DC Current200μA/2000μA/20mA/200mA±(1.8%+5)
    AC Current200μA/2000μA/20mA/200mA±(2.0%+5)
    Resistance(Ω)200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10MΩ±(1.0%+3)
    20MΩ±(1.2%+15)
    FEATURE
    Display2000 counts
    Data hold
    Diode test
    Continuity
    NCV
    Work light
    GENERAL
    Power Supply2×1.5V AAA
    Weight150g
    Size130mm×62mm×27mm
    Safety RatingEN61010-1,EN61010-2-033 EN61326,CATⅢ600V

    Product Description of Auto Rnge Digital Multimeter


    MS8232 Non-Contact Mini Digital Multimeter DC AC Voltage Current Tester The instrument is a portable digital multimeter. It has stable performance, high precision, low power consumption, novel structure. Safe and reliable, it's an ideal measuring instrument for the majority of users. The instrument can measure DC voltage, AC voltage, DC current, AC current, resistance, diode and connectivity; with non-contact voltage detection function, timely remind the user to pay attention to operation safety, so it's more safe and rest assured for user to use.


    • The Instrument is designed and manufactured strictly in accordance with the safety standard IEC61010 and in conformity with double insulation, over-voltage standard 600V CAT Ⅲ and pollution level 2 safety standards
    • It can measure AC & DC Voltage, AC & DC Current, resistance and connectivity test, NCV detection.

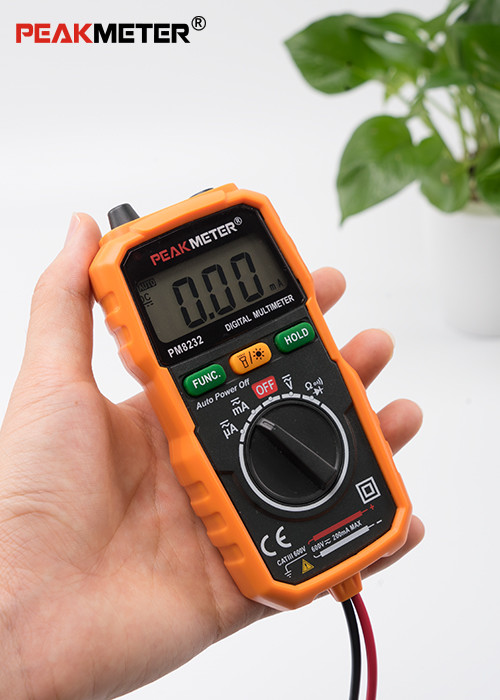

    Detailed Images of Auto Range Digital Multimeter


    DC / AC Current Auto Range Digital Multimeter High Precision Stable PerformanceDC / AC Current Auto Range Digital Multimeter High Precision Stable Performance


    Our Target


    We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.


    R&D Team


    Our R&D team have over 20 years R&D experience in instrument industry .


    Mission


    Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
