    Multifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8229
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Multifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement

    Multifunctional Digital Multimeter With AC/DC Current , Sound Level , Relative Value Measurement


    English User Manual:https://drive.google.com/open?id=1ljOAGGEPd_lT6xwQYJyYhgGdm4GcmeGR


    Features of Multifunctional Digital Multimeter


    • Measure AC&DC Voltage, Frequency, Duty, AC & DC Current, Resistance
    • Thermocouple temperature measurement
    • Display: 6000 Counts
    • Auto and Manual Range
    • Relative Measurement
    • Data hold
    • Diode test
    • Continuity
    • Backlight

    SpecificationsRangeAccuracy
    DC Voltage60mV/600mV/6V/60V/600V/1000V±(0.7%+2)
    AC Voltage60mV/600mV/6V/60V±(0.8%+3)
    600V±(1.0%+3)
    DC Current600μA/6000μA/60mA/600mA/6A±(1.2%+3)
    10A±(2.0%+10)
    AC Current600μA/6000μA/60mA/600mA/6A±(1.5%+3)
    10A±(3.0%+10)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(1.2%+5)
    60MΩ±(2.0%+5)
    Capacitance10nF/100nF/1000nF/10uF/100uF/1000uF/10mF±(3.0%+3)
    Frequency9.999Hz/99.99Hz/999.9Hz/9.999kHz/
    99.99kHz/999.9kHz/9.999MHz
    ±(1.0%+5)
    Noise40-100dB±3.5%dB at 94dB
    Illumination (Lux)4000/40000(5.0%+10)
    Humidity20-95%±5.0%RH
    Ambient Temperature0℃~40℃±2℃
    32℉~104℉±4℉
    Temperature Measurement with Thermocouple-20℃~0℃±5.0%
    0℃~400℃±1.0%
    400℃~1000℃±2.0%
    -4℉~32℉±5.0%
    32℉~752℉±1.0%
    752℉~1832℉±2.0%
    Feature
    Display6000 Counts
    Diode
    Continuity
    Illumination (Lux)
    Humidity
    Time
    Data Storage
    Back Light
    Manual and Automatic Range
    MAX/MIN/REL
    Data Hold
    General
    Power Supply4*1.5V AA Batteries
    Size204mm*94mm*57mm
    Weightabout 410g
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 1000V

    Product Description of Multifunctional Digital Multimeter


    This instrument can be used to measure DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Capacitance, Frequency and Duty Ratio, Diode Test, Connectivity Test, Temperature, Luminance, Humidity. Manual and automatic range. Convenient exchange makes your measurement more accurate. Relative value measurement function. In this mode, the instrument display value = actual value-set reference value. Large LCD screen with backlight can help the user see the data clearly even in the night. Auto power-off function. If there are no operations within 15 minutes as of the instrument is turned on, the instrument will automatically enter into sleep state.


    • The instrument is equipped with manual and automatic range. In automatic range mode, the instrument will select the best range for the input signal detected, so it is convenient that the user does not need to re-select range when changing the measuring signal.
    • The instrument is equipped with backlight function for the convenience that the user accurately read the measurement results in places with bad lighting conditions.

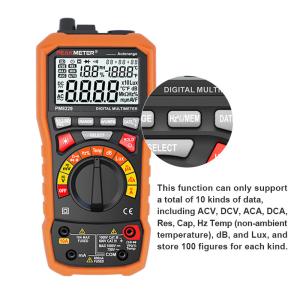

    Detailed Images of Multifunctional Digital Multimeter

    Multifunctional Auto Range Digital Multimeter Sound Level Relative Value MeasurementMultifunctional Auto Range Digital Multimeter Sound Level Relative Value Measurement
