PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter

    Buy cheap PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter from wholesalers

    Buy cheap PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter from wholesalers
    • Buy cheap PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter from wholesalers
    • Buy cheap PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter from wholesalers

    PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8247S
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter

    Smart Auto Range Professional Digital Multimeter With NCV Detection And Backlight


    English User Manual:https://drive.google.com/open?id=1llsjGZN6IvsUTk4LZftzHtVCGF2C1_25


    Features of Smart Digital Multimeter


    • Brand Name: PEAKMETER
    • AC Voltage: 6V/60V/600V
    • DC Current: N/A
    • Dimensions: 169 x 83 x 53mm
    • AC Current: N/A
    • DIY Supplies: Electrical
    • Measuring Capacitance Range: 60nF~6mF
    • Measuring Resistance Range: 6k~10M Ohm
    • Display Type: Digital Display
    • Operating Temperature: 0 - 40 ℃
    • Model Number: PM8247S
    • Operating Mode: Smart Full Auto Range
    • Measuring Inductance Range: N/A
    • DC Voltage: 6V/60V/600V
    • Frequency: 30~1000Hz
    • Display: 6000 Counts
    • Bargraph Display: Yes
    • Continuity/ Data Hold: Yes
    • NCV/Live wire Test: Yes
    • Worklight / Backlight: Yes
    • Auto Power Off: Yes
    • Power: 3 x 1.5V AAA
    • Weight: Approx. 250g

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V±(0.8%+3)
    AC Voltage6V/60V/600V±(1.2%+3)
    Resistance6kΩ/60kΩ/600kΩ±(1.0%+3)
    6MΩ/10MΩ±(1.2%+5)
    Capacitance60nF/600nF/6µF/60µF/600µF/6mF±(4.0%+5)
    Frequency30~1000Hz
    Features
    Display6000 counts
    Auto Range
    Bargraph Display
    Continuity
    NCV
    Live Test
    Data Hold
    Flash Light
    Back Light
    Auto Power Off
    General
    Power Supply3*1.5V AAA batteries
    Net weight245g (batteries are not included)
    Gross weight479g
    Size165mm*81mm*51mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Product Description of Smart Digital Multimeter


    This meter is a hand-held and battery operated Digital Multimeter with multi function. This meter is designed to meet IEC61010-1& CAT III 600V over category and double insulation. The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop. CAT III: Measurements on mains distribution parts of the buildings. Typical short-circuit current <50 kA. The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.


    • This instrument is a kind of intelligent digital multi-meter, so the operation is very simple, and it is not required to carry out function selection during measurement
    • If no pressing operation within 10 minutes, while no signal is input, the instrument will shut down automatically.

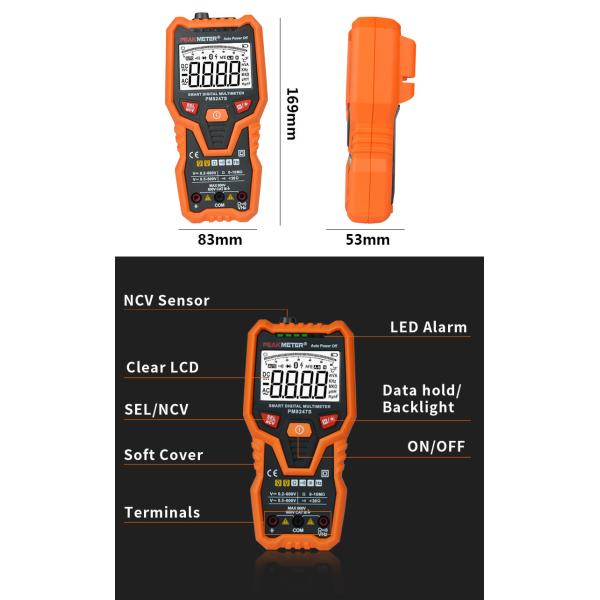

    Detailed Images of Smart Digital Multimeter


    PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter


    PEAKMETER Commercial Smart Full Auto Range High Precision Amp Reading Multimeter
