NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance

    Buy cheap NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance from wholesalers

    Buy cheap NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance from wholesalers
    • Buy cheap NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance from wholesalers
    • Buy cheap NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance from wholesalers

    NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM8248S
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    NCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance

    NCV Detection , Frequency And Temperature Measurement , Smart Digital Meter With Auto Range


    English User Manual:https://drive.google.com/open?id=1llsjGZN6IvsUTk4LZftzHtVCGF2C1_25

    Features of Smart Digital Multimeter


    • Over load protection: used the PTC protection circuit for resistance, frequency measurement.
    • Auto range DMM, that full scale is 2000 counts
    • Display:3 1/2 digit LCD display
    • Max value hold function
    • Data hold function
    • Back light

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V±(0.8%+3)
    AC Voltage6V/60V/600V±(1.2%+3)
    DC Current600mA±(1.0%+3)
    AC Current600mA±(1.5%+3)
    Resistance6kΩ/60kΩ/600kΩ±(1.0%+3)
    6MΩ/10MΩ±(1.2%+5)
    Capacitance60nF/600nF/6µF/60µF/600µF/6mF±(4.0%+5)
    Frequency30~1000Hz±(0.5%+2)
    Temperature
    (℃/℉)
    -20℃~1300℃±(1.0%+3)
    -4℉~2372℉±(1.0%+3)
    Features
    Display:6000 countsAnalog Bar Display
    Auto RangeAuto Power Off
    ContinuityLive Test
    Data HoldBacklight
    NCVTransistor
    General
    Power Supply3*1.5V AAA batteries
    Net weightApprox.247g (batteries are not included)
    Gross weight507g
    Size165mm*82mm*51mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Product Description of Smart Digital Multimeter


    PM8248S is a Multi - Functional Smart multimeter with Auto Range, it can measure capacitance, resistance, current, voltage, frequency, temperature, transistor and NCV Detection.It has a fully automatic cruise test system, which can intelligently detect no burning meter and non-contact line. PM8248S can meet the needs of most electrical surveyors and protect their safety wheil measuring.


    • This instrument is a kind of intelligent digital multi-meter, so the operation is very simple, and it is not required to carry out function selection during measurement
    • If no pressing operation within 10 minutes, while no signal is input, the instrument will shut down automatically.

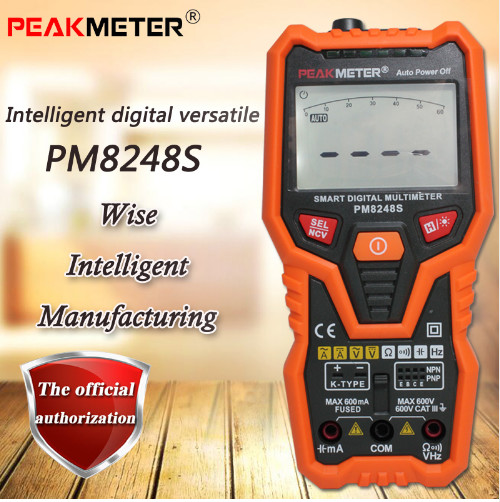

    Detailed Images of Smart Digital Multimeter


    NCV Detection Auto Range Digital Multimeter Multifunctional Stable PerformanceNCV Detection Auto Range Digital Multimeter Multifunctional Stable Performance
