    Auto Power Off Handheld Digital Multimeter 2000 Counts Transistor Diode Tester

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM64
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Auto Power Off Handheld Digital Multimeter 2000 Counts Transistor Diode Tester

    Hand - Held Digital Multimeter With 2000 Counts Transistor Diode Tester


    English User Manual:https://drive.google.com/open?id=1OUUi5HZHwZPLue1-68aboi05c-2hU8Y3


    Features of Handheld Digital Multimeter


    • Reading maintenance mode
    • Battery saving energy function
    • Measuring AC and DC voltage
    • Measuring resistance
    • Testing diode
    • Audible continuity testing
    • Measuring capacitance
    • Transistor measuring
    • Measuring frequency
    • Measuring temperature
    • Measuring current

    SpecificationsRangeAccuracy
    DC Voltage200mV/2V/20V/200V±(0.5%+2)
    1000V±(0.8%+2)
    AC Voltage2V/20V/200V±(0.8%+3)
    750V±(1.2%+3)
    DC Current2mA/20mA±(0.8%+1)
    200mA±(1.5%+1)
    20A±(2.0%+5)
    AC Current20mA±(1.0%+5)
    200mA±(1.8%+5)
    20A±(3.0%+7)
    Resistance200Ω±(0.8%+3)
    2kΩ/20kΩ/200kΩ/2MΩ±(0.8%+2)
    20MΩ±(1.0%+2)
    200MΩ±(6.0%+10)
    Capacitance20nF/200nF/2µF/20µF±(4.0%+3)
    200µF±(6.0%+10)
    Frequency20kHz±(2%+5)
    Temperature-20℃~0℃±(5%+4)
    1℃~400℃±(2%+3)
    401℃~1000℃±(2%+5)
    Features
    Display2000 counts
    Data Hold
    Auto Power Off
    Diode Test
    Transistor Test
    Continuity
    General
    Power Supply1*9V6F22 battery
    Net weightApprox.370g(battery is not included)
    Gross weight570g
    Size193mm*93mm*50mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 1000V

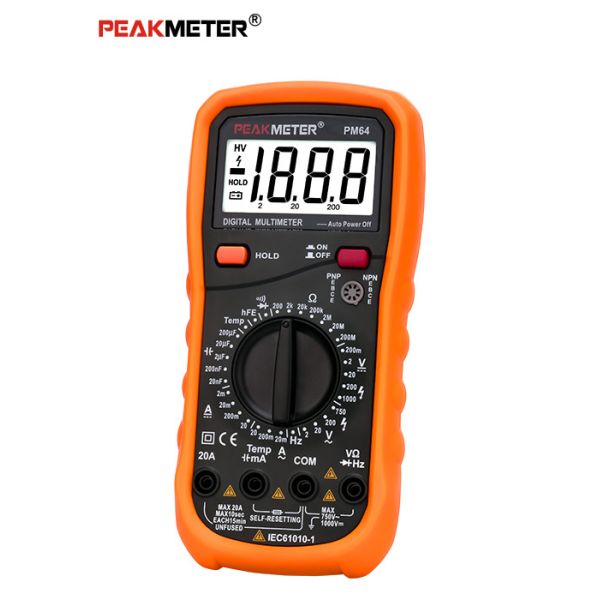

    Description of Handheld Digital Multimeter


    PM64 is a digital multimeter that measures temperature. It can measure AC and DC voltage, AC and DC current, resistance, capacitance, frequency, diodes and transistors, etc. This multimeter has powerful functions and possess a fuse: Fuse FF 250mA/1000V; fuse with a grad F 10A/1000V.This is a feature-rich, simple-structured multimeter.


    • Removable soft rubber protective case to protect the body from collision. The rear shell is designed with a support frame, which is convenient for users to operate and read.
    • 31/2 digit LCD display. Automatically display unit symbols in accordance with measurement function grade.
    • Subdivide the input range of AC and DC voltage and current. The clear silk screen enables users to effectively and directly understand the signal and maximum range that should be input to each jack.

    Service


    • All products have 12 months warranty, maintenance will not charge during this period (excluded damage of error operation, damage of battery or surface), and delivery fee will be borne by the customer.
    • Material and service fee will be charged when warranty is expired, and delivery fee will be charged.
    • To product which is out of warranty but has already repaired, we will provide another three months free service if the same spare part has problem recurs.
    • Customer can refer the maintenance order to get more information.
