High Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery Indications

    Buy cheap High Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery Indications from wholesalers

    Buy cheap High Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery Indications from wholesalers
    • Buy cheap High Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery Indications from wholesalers
    • Buy cheap High Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery Indications from wholesalers

    High Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery Indications

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2028S
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    High Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery Indications

    Smart AC Digital Clamp Meter With VFD, Continuity, PEAK And ACA Measurement


    English User Manual:https://drive.google.com/open?id=1joWRErQtT7T-9kqB257O2HZ7LESQIe_G


    Features of Smart AC Digital Clamp Meter


    • Display: LCD
    • Operating height: Max. 2000m
    • Max. display value: 6000 digit.
    • Over range display: ‘0L’ or ‘-0L’.
    • Automatic shutdown time: 10 minutes
    • Power supply: 1.5V AAA battery × 3
    • Sampling time: About 3 times/second.
    • Operating temperature: 18℃~ 28℃.
    • Storage temperature: -10℃~ 50℃.
    • Overload protection throughout the range.
    • Select measurement function and range automatically.
    • Max.voltage between measurement terminal and ground: 600V DC or 600V AC
    • Polarity indication: Automatic indication, and ‘-’ indicates negative.
    • Unit display: Function and electricity quantity unit display.
    • Battery under-voltage indication: LCD display symbol
    • emperature coefficient: Less than 0.1×accuracy/℃.

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V±(0.5%+3)
    AC Voltage6V/60V/600V±(0.8%+5)
    AC Current60A/600A/1000A±(2.5%+8)
    Resistance6kΩ/60kΩ/600kΩ/6MΩ/10MΩ±(0.8%+3)
    Frequency60Hz/1000Hz±(1.0%+5)
    Features
    Display6000 counts
    Data Hold
    Work Light
    NCV
    Continuity
    Back Light
    Frequency (Clamp)
    Frequency (Voltage)
    Auto Power Off
    LPF
    Dual Display
    V/Ω/A/Cap Auto Scan
    General
    Power Supply3*1.5V AAA Batteries
    Net weight314g (batteries are not included)
    Gross weight595g
    Size247mm*84mm*40mm
    Jaw SizeØ35mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Product Description of Smart AC Digital Clamp Meter


    The instrument of this series is a small hand-held 3 1/2 digital clamp meter featuring stable,highly reliable and anti-drop performance.It can be used to measure DC and AC voltge,DC current,resistance,diodes, and in-circuit continuity test.This digital clamp meter is provided with a LCD back light. The display screen shows the voltage and current . Its designed is according to EN61010-1, EN61010-2-032, and CAT.III600V Concerning Safety Requirements.


    • The instrument with safety requirements on electronic measuring instrument of IEC-61010-1, IEC-61010-2-030, level Ⅱ pollution, and over-voltage standard is CAT Ⅳ 600V.
    • If environment light is too dark, causing it difficult to read, the Backlight or flashlight function can help user to read value.
    • If there’s no operation within 10 minutes after start, instrument will enter standby state, and shut down to save energy.

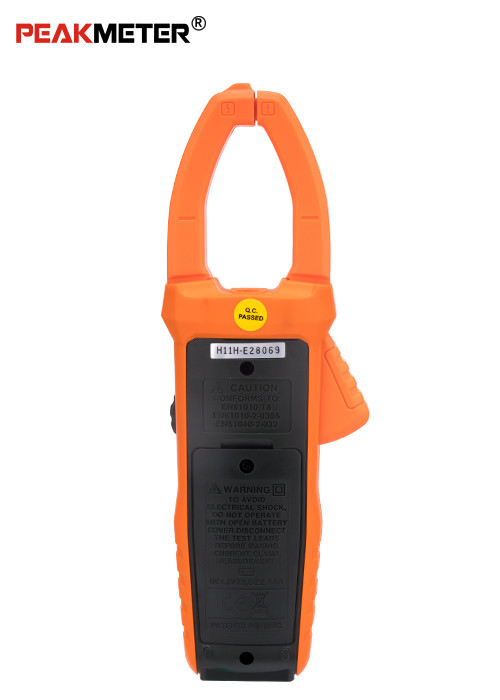

    Detailed Images of Smart AC Digital Clamp Meter

    High Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery IndicationsHigh Accuracy Digital Clamp Meter Multimeter Overload Protection Low Battery Indications


    Our Target


    We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.


    R&D Team


    Our R&D team have over 20 years R&D experience in instrument industry .


    Mission


    Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
