    Intelligent Anti - Burning Digital Clamp Meter Multimeter For Electric Power Maintenance

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2116S
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Intelligent Anti - Burning Digital Clamp Meter Multimeter For Electric Power Maintenance

    Intelligent Anti - Burning Digital Clamp Meter Multimeter For Electric Power Maintenance



    English User Manual:https://drive.google.com/open?id=1n5HmWOP1rwjL-bACGOLj9LmwELG_xoZf

    Features of Digital Clamp Meter


    • Automatically select measurement and range.
    • Overload protection for the whole measurement range.
    • Data hold function low power indication, and auto power off
    • Maximum allowable voltage between the measuring terminal and the Earth:600V DC or 600V AC.
    • Professional AC Voltage Detector with NCV Detection.
    • High quality and easy-to-use.
    • Mini and easy to carry

    SpecificationsRangeAccuracy
    DC Voltage0.5V~600V±(0.5%+3)
    DC Current6A/60A/100A±(2.5%+5)
    AC Voltage1.0~600V±(0.8%+5)
    AC Current6A/60A/100A±(2.5%+5)
    Resistance0~6kΩ±(0.8%+3)
    Frequency40Hz~1000Hz±1.0% rdg
    Features
    Display6000 counts
    Auto range
    Continuity
    V/Ω/A Auto Scan
    Frequency (Clamp)
    Frequency (Voltage)
    Data Hold
    Back Light
    NCV
    General
    Power Supply2*1.5V AAA Batteries
    Net weight115g (batteries are not included)
    Gross weight250g
    Size158mm*55mm*29mm
    Jaw SizeØ20mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Product Description of Digital Clamp Meter


    The PM2116S is designed to automatically select measurement functions and measuring ranges. This intelligent AC/DC Clamp Meter is an innovative product, which has breaks through the traditional clamping universal meter and become a high-tech measuring tool.The product can display the Current Frequency while measuring the Current/Voltage, and they will be displayed on its display screen.It has Low Pass Filter, Peak Value Measurement, Non Contact Voltage detection, Backlight display,Data Hold function. Users can complete the above functions at any time whenever the Multimeter been boot up. Users does not need to make any gear changes during the measurement without fear that if it will be burnt by the wrong operation.


    • The instrument is designed to automatically select measurement functions and measuring ranges.
    • This instrument is in strict compliance with the safety requirements as specified in IEC-61010-1, IEC-61010-2-030 for electrical measuring instruments.

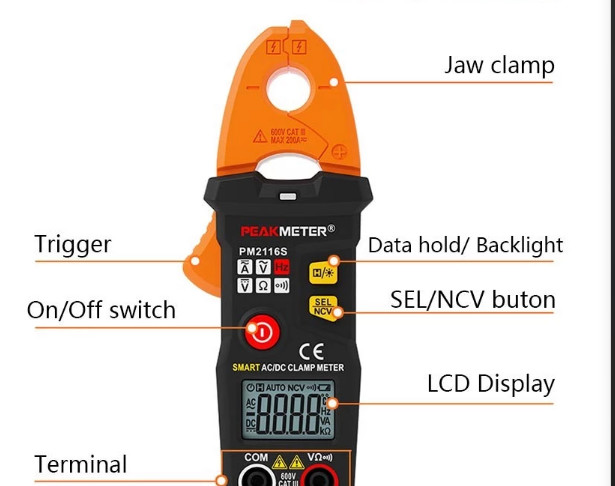

    Detailed Images of Digital Clamp Meter


    Intelligent Anti - Burning Digital Clamp Meter Multimeter For Electric Power MaintenanceIntelligent Anti - Burning Digital Clamp Meter Multimeter For Electric Power Maintenance

    Intelligent Anti - Burning Digital Clamp Meter Multimeter For Electric Power Maintenance


    Our Target


    We aim to produce intelligent instruments, provide high quality services, and become an innovative manufacturer.


    R&D Team


    Our R&D team have over 20 years R&D experience in instrument industry .


    Mission


    Our mission is to get our work done well to become customer’s reliable business friend. S.E.Q( Service , Economic pricing , Quality ) is our concern , we know what you need ,and we know what we have .
