    High Precision Digital Clamp Meter Multimeter Continuity And PEAK Value Tester

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2028S
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    High Precision Digital Clamp Meter Multimeter Continuity And PEAK Value Tester

    Smart AC Digital Clamp Meter With ACA Dual Display , VFD , Continuity And PEAK Value Tester


    Features of Smart AC Digital Clamp Meter


    • Selection measurement function and range auomatically.
    • Overload protection through the range.
    • Max. value between measurement terminal and ground:600V DC or 6000V AC
    • Operating height: Max. 2000m
    • Automatical shutdown time: 10minutes

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V±(0.5%+3)
    AC Voltage6V/60V/600V±(0.8%+5)
    AC Current60A/600A/1000A±(2.5%+8)
    Resistance6kΩ/60kΩ/600kΩ/6MΩ/10MΩ±(0.8%+3)
    Frequency60Hz/1000Hz±(1.0%+5)
    Features
    Display6000 counts
    Data Hold
    Work Light
    NCV
    Continuity
    Back Light
    Frequency (Clamp)
    Frequency (Voltage)
    Auto Power Off
    LPF
    Dual Display
    V/Ω/A/Cap Auto Scan
    General
    Power Supply3*1.5V AAA Batteries
    Net weight314g (batteries are not included)
    Gross weight595g
    Size247mm*84mm*40mm
    Jaw SizeØ35mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Product Description of Smart AC Digital Clamp Meter


    PM2028S Smart AC/DC Clamp multimeter is an innovative, which is breaking through the traditional clamp Multimeter type. The meter can preform measurements of AC/DC valtage and current resistance, frequency, capacitance, etc. Specially, it has Max. and Min. value hold function.It is an ideal multi-function instrument with scores of pracrical applications for professional ,workshop, schools, hobby and home use.Specially, it has Max. and Min. value hold function. Its' designed is according to EN61010-1, EN61010-2-032, and CAT.III600V Concerning Safety Requirements.


    • The instrument with safety requirements on electronic measuring instrument of IEC-61010-1, IEC-61010-2-030, level Ⅱ pollution, and over-voltage standard is CAT Ⅳ 600V.
    • If environment light is too dark, causing it difficult to read, the Backlight or flashlight function can help user to read value.
    • If there’s no operation within 10 minutes after start, instrument will enter standby state, and shut down to save energy.

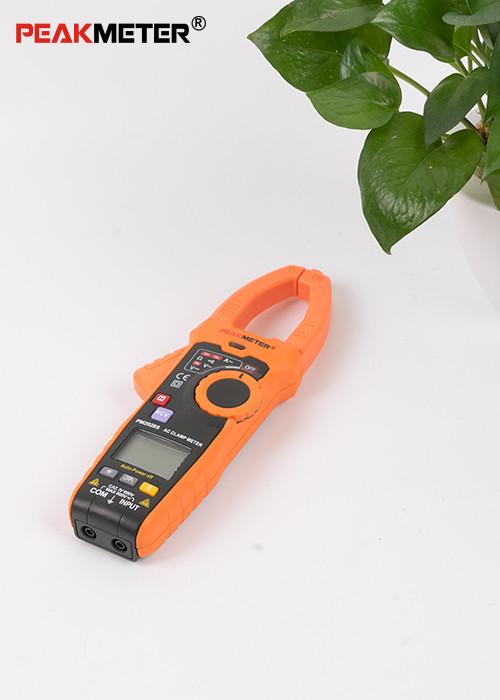

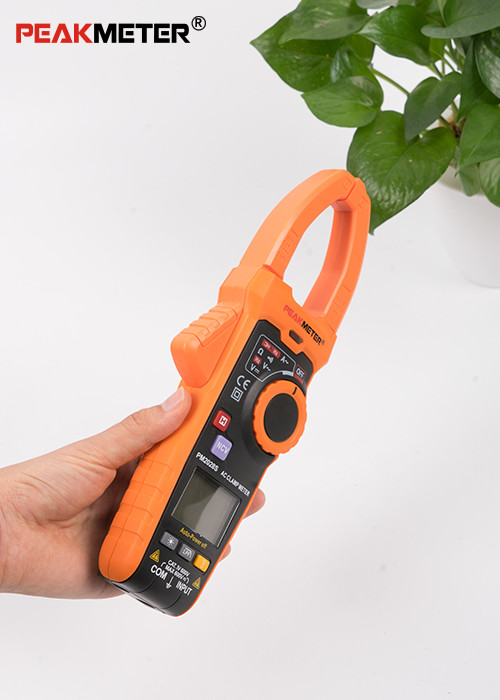

    Detailed Images of Smart AC Digital Clamp Meter


    High Precision Digital Clamp Meter Multimeter Continuity And PEAK Value TesterHigh Precision Digital Clamp Meter Multimeter Continuity And PEAK Value Tester
