    Resistance Tester Ac Digital Clamp Meter , Custom Leakage Current Clamp Meter

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2016A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    Resistance Tester Ac Digital Clamp Meter , Custom Leakage Current Clamp Meter

    Digital AC Clamp Meter Multimeter With Data Hold , Resistance And Frequency Tester


    English User Manual:https://drive.google.com/open?id=1o_JogD4FAEVFV-Ms344b_xEaOrjaZGFI


    Features of Digital AC Clamp Meter


    • Max display value: 6000 numbers
    • Over range indication: “OL” or “-OL”
    • Battery under-voltage indication
    • Backlight and reading hold
    • Auto shutdown

    SpecificationsRangeAccuracy
    DC Voltage0.5~600V±(0.5%+3)
    AC Voltage1.0~600V±(0.8%+5)
    AC Current6A/60A/200A‘±(2.5%+8)
    Resistance0~6kΩ±(0.8%+3)
    Features
    Display6000 counts
    Auto Range
    Continuity
    Data Hold
    Back Light
    General
    Power Supply2*1.5V AAA Batteries
    Net weight122g (batteries are not included)
    Gross weight226g
    Size158mm*55mm*29mm
    Jaw SizeØ20mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Product Description of Digital AC Clamp Meter


    PM2016 series is a small hand-held 3 3/4 digital clamp meter featuring stable, highly reliable and anti-drop performance.The single-hand-operation design for the range switch makes measurement simple and easy. Overload protection and low battery indication are provided. It is an ideal multi-function Instrument with scores of practical applications for professional, workshop, schools, hobby and home use.


    • This meter is equipped with square value measuring function (At AC A and AC V range)
    • This meter is equipped with auto zero function (at DCA range)
    • This meter is equipped with maximum value and minimum value measuring function.
    • This meter can measure frequency by clamp.
    • This meter has function of auto power off.
    • Auto and manual range is 6600 counts.

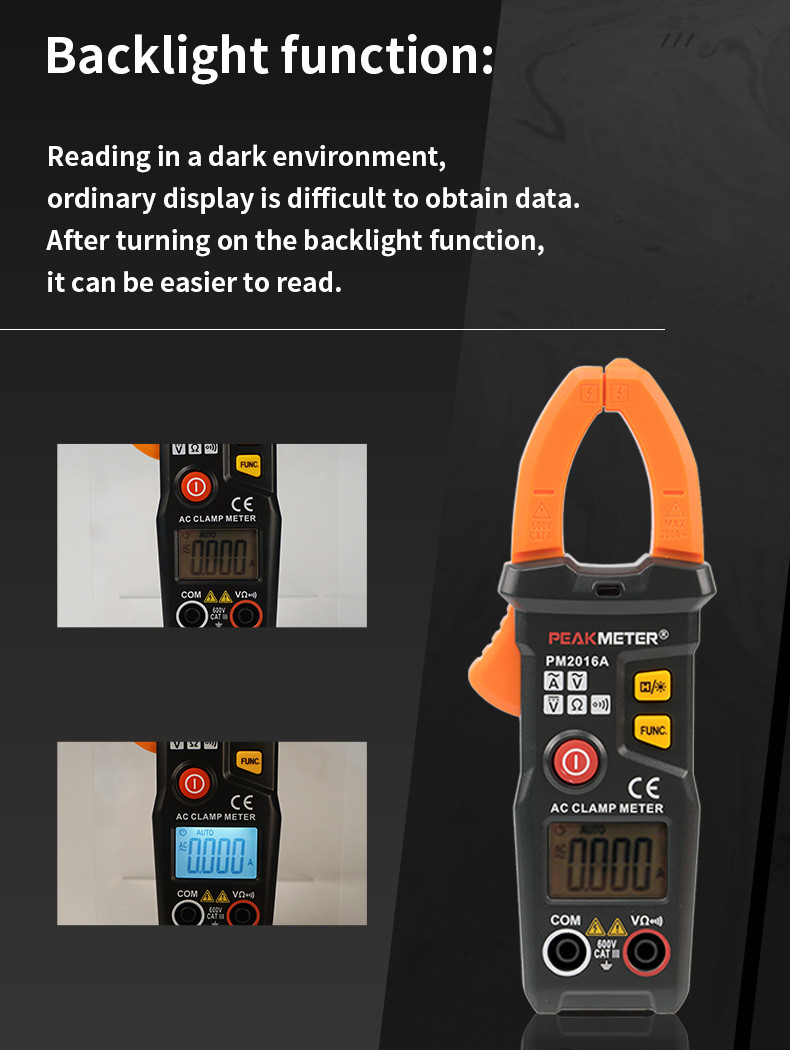

    Detailed Images of Digital AC Clamp Meter


    Resistance Tester Ac Digital Clamp Meter , Custom Leakage Current Clamp MeterResistance Tester Ac Digital Clamp Meter , Custom Leakage Current Clamp Meter
