    High Accuracy Digital Clamp Meter Multimeter Measure 1000A AC Current

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM2028A
    Certification : CE
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    • Product Details
    • Company Profile

    High Accuracy Digital Clamp Meter Multimeter Measure 1000A AC Current

    T - RMS Digital Clamp Meter With NCV And Data Hold , Measuring Frequency , DC Voltage And Resistance


    English User Manual:https://drive.google.com/open?id=1-b9HI6ZZRCnXuNrdu6M5S7uw-BrVVZ71


    Features of T-RMS Digital Clamp Meter


    • Max. voltage between measurement terminal and ground: 1000V DC or 1000V AC
    • Select measurement function and range automatically
    • Overload protection throughout the range
    • Automatic shutdown time: 10 minutes
    • Over range display: “OL” or “-OL”
    • True RMS and Data Hold
    • Continuity and NCV test

    SpecificationsRangeAccuracy
    DC Voltage6V/60V/600V/1000V±(1.0%+3)
    AC Voltage6V/60V/600V/1000V±(1.2%+3)
    AC Current60A/600A/1000A±(3.0%+5)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(1.0%+3)
    60MΩ±(1.2%+30)
    Frequency100Hz/1000Hz/10kHz±(1.0%+5)
    10%~99%±(3.0%+2)
    Capacitance60nF/600nF/6uF/60uF/600uF/6mF/60mF±(4.0%+3)
    ℃/℉-20~1000℃±(2.0%+2)
    -4~1832℉±(2.0%+2)
    Features
    Display: 6000 countsAuto and Manual Range
    True RMSData Hold
    Work LightRelative Measurement
    NCVContinuity
    Back LightLow Battery Indication
    General
    Power Supply3*1.5V AAA Batteries
    Net weight310g (batteries are not included)
    Gross weight610g
    Size247mm*84mm*40mm
    Jaw SizeØ35mm
    Safety RatingEN61010-1, EN61010-2-033, EN61326, CAT. Ⅲ 600V

    Product Description of T-RMS Digital Clamp Meter


    PM2028A is a large range of 6000 counts clamp meter which can measure 1000A AC Current, It meets CE standard and has double insulation protection. It can measure Current, Voltage and Frequency by switching the key, room Temperature can be measured and object temperature can be measured through K-Type Thermocouple. The relative measurement key is very convenient for daily data comparison measurement as well.


    • Display-6000 counts, function and electricity quantity unit display, backlight function provides user with light source for clear reading
    • NCV-Non contact voltage detection, instrument could detect whether the lead being measured is > 90V AC Voltage, and instrument detects AC voltage, instrument buzzer will alarm and NCV alarm light will flash

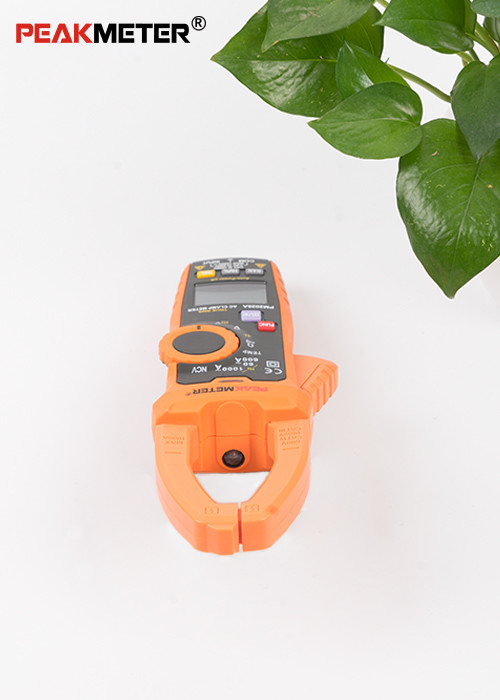

    Detailed Images of True-RMS Digital Clamp Meter


    High Accuracy Digital Clamp Meter Multimeter Measure 1000A AC CurrentHigh Accuracy Digital Clamp Meter Multimeter Measure 1000A AC Current
