    Digital Data Ethernet Cable Line Tester Electric Cable Detector Multifunctional

    Ask Lasest Price
    Brand Name : PEAKMETER
    Model Number : PM6816
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 150,000 Pcs Per Month
    Delivery Time : 5-40 work days
    Price : Negotiation
    • Product Details
    • Company Profile

    Digital Data Ethernet Cable Line Tester Electric Cable Detector Multifunctional

    Multi network cable tester BNC data Ethernet Lan RJ45 RJ11 wire Cable tester


    Features of Cable Line Tester


    • Test line level, positive and negative polarity
    • Test the connection between network cable and switch port.
    • Check lead continuity

    Main function
    Wire TrackDirectly track wire type: RJ45, RJ11
    Track other wire through the attachment
    Sequence CollationOpen circuit, short circuit, detection of cable line sequence
    Network Wire CollationIt can fully test the line sequence of network cable, open circuit, short-circuit, miswire, reverse connection and splitpairs
    Telephone Line TestIdentify the state of working telephone line (clear, ring, busy)
    ContinuityJudge continuity of the cables or wires
    Switch Port CollationDetection switch connected condition
    DC Level Test
    General

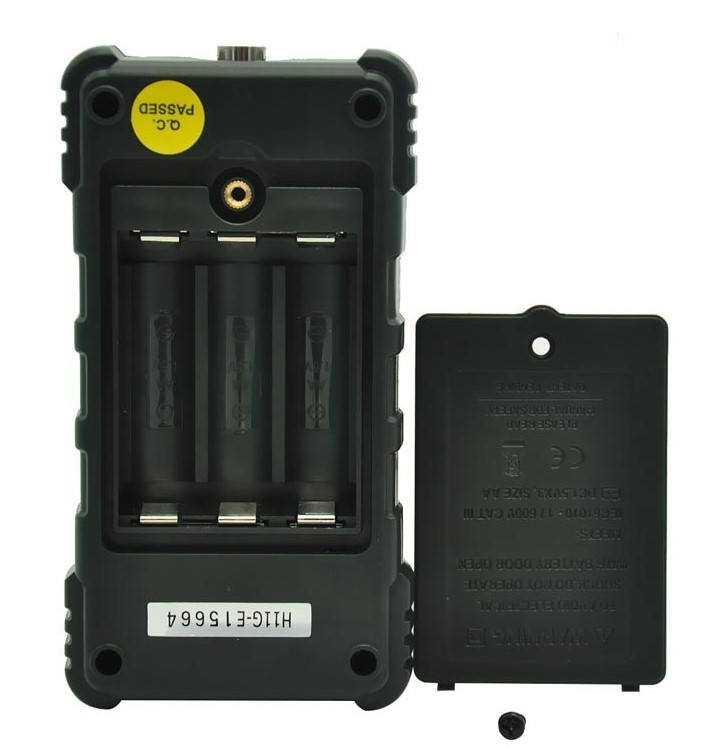

    Power SupplyEmitter: 3*1.5V AA Batteries
    Receiver: 1*9V 6F22
    SizeEmitter: 122mm*66mm*28mm
    Receiver: 210mm*44mm*25mm
    Net weightEmitter 99g, Receiver: 81.8g (None of the batteries)
    Gross weight449g
    Safety RatingCE CAT. Ⅲ 600V RoHS

    Product Description of Cable Line Tester


    PM6816 is a wire line search and Detection Instrument which can find and adjust lines or conduct performance tests on wire wires, wire lines, BNC and wires. This is a multi-functional handheld cable tracking & testing tool, it can track RJ45, RJ11, BNC, with 2 tones selection.


    • Whatever the above info from the manufacturer, from my experience, it has all the basic wire tracking and testing function with low battery indicator, an LED light on the receiver, a simple voltage test

    • It can work in a switch hubs environment, but no POE please

    • The instrument is designed and manufactured strictly in accordance with the safety standard CE CAT.III 600V RoHS.​

    • Multi network cable tester BNC data Ethernet Lan RJ45 RJ11 wire Cable tester


    Accessories


    • Earphone cable x 1
    • Gift Box x 1
    • Portable bag x 1
    • Plastic Bag x 1
    • Manual x 1
    • Battery (PPPVCS9VE012/9V ) x 1
    • Battery (AA/1.5V Manganese Battery) x 3

    Detailed Images of Cable Line Tester

    Digital Data Ethernet Cable Line Tester Electric Cable Detector Multifunctional

    Digital Data Ethernet Cable Line Tester Electric Cable Detector MultifunctionalDigital Data Ethernet Cable Line Tester Electric Cable Detector Multifunctional
